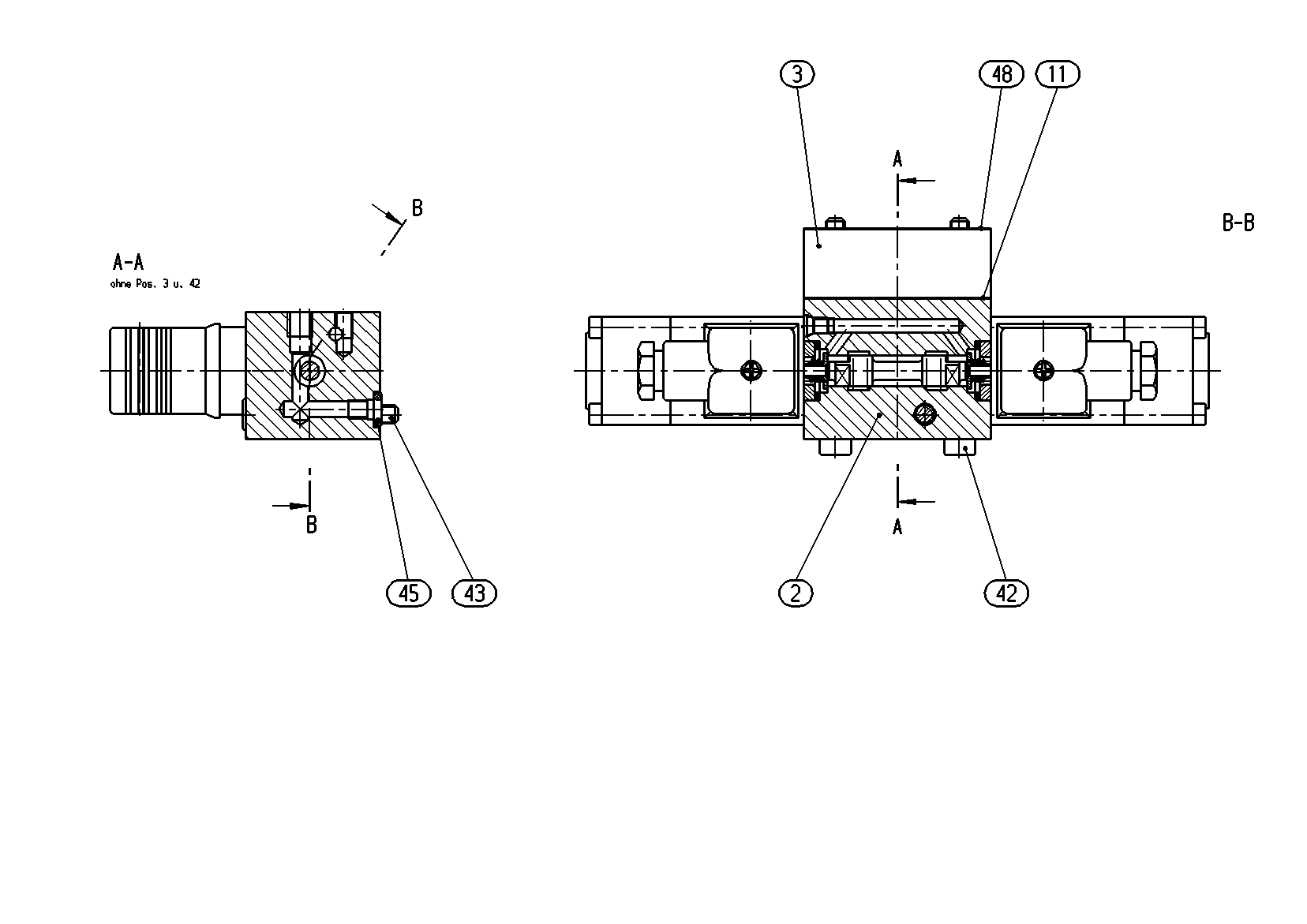

Assembly
DIRECTIONAL-CONTROL VALVER909448980
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434267 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| 3 | R909425600 | INTERMEDIATE PLATE | 1 | |
| 11 | R909076292 | SEALD | 1 | |
| R902037966 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R909157512 | O-RINGD | 1 | ||
| R902603829 | SEALD | 1 |
