Assembly

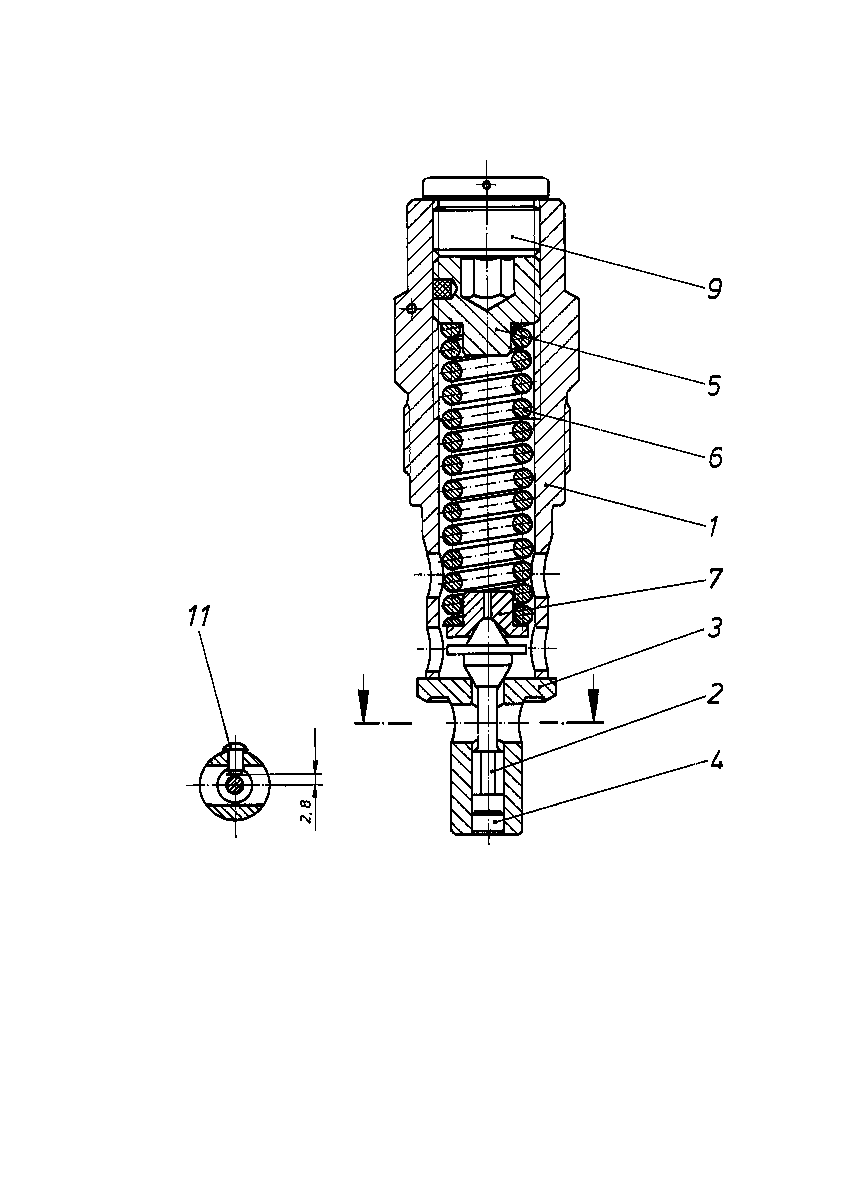

PRESSURE RELIEF VALVER909448993
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909449460 | SPRING SLEEV | 1 | |
| 2 | R909449461 | VALVE SPOOL | 1 | |
| 3 | R909449462 | GUIDE PART | 1 | |
| R909449463 | PLUG | 1 | ||
| 5 | R909449464 | STRAINING SCREW | 1 | |
| 6 | R909449465 | COMPRESSION SPRING | 1 | |
| 7 | R909449466 | SPRING DISK | 1 | |
| 9 | R909449467 | SCREW PLUG | 1 | |
| R909831283 | GROOVED NAIL | 1 |
