Assembly

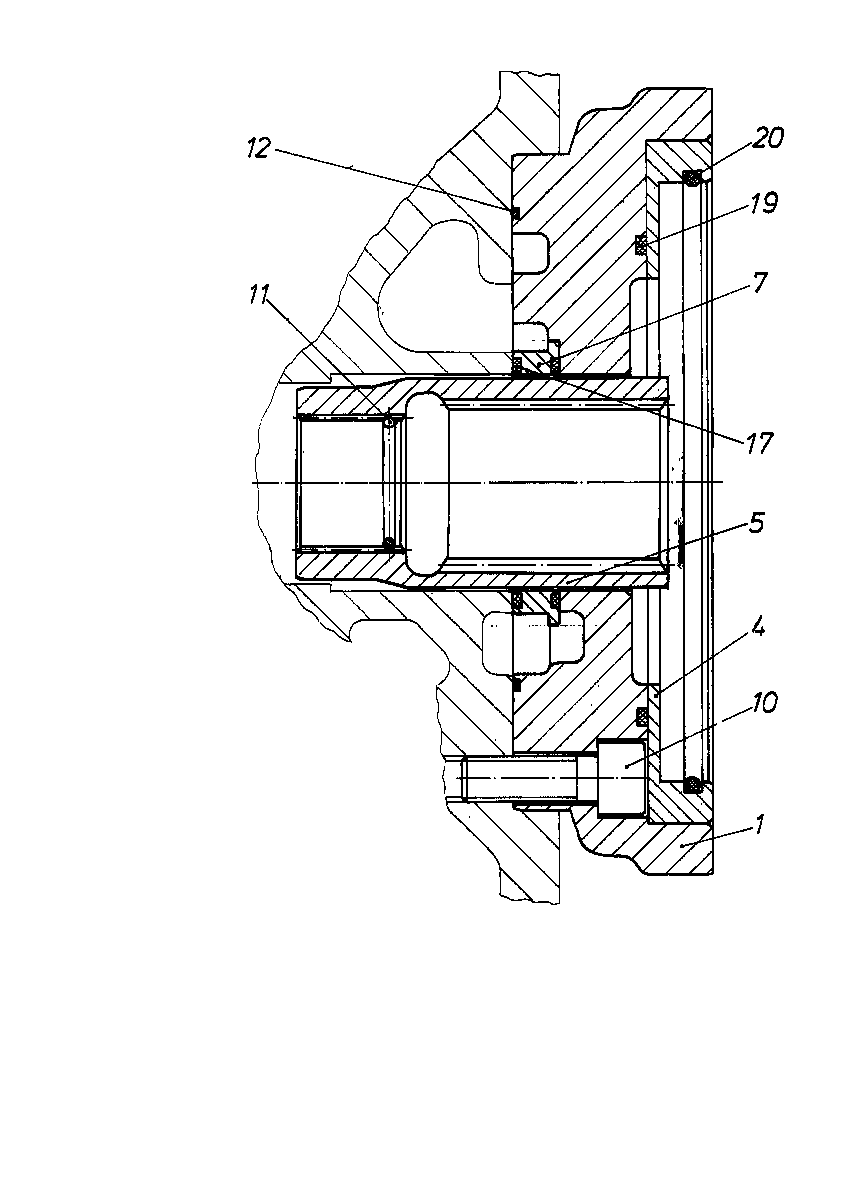

BELL HOUSINGR909600013
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909439095 | INTERMEDIATE FLANGE | 1 | |
| 4 | R909439740 | INTERMEDIATE RING | 1 | |
| 5 | R909449510 | THROUGH DRIVE COUPLING | 1 | |
| 7 | R909449512 | SEAL RING | 1 | |
| 10 | R909083089 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R902601476 | SNAP RING | 1 | |
| R909830130 | O-RINGD | 1 | ||
| 17 | R909086378 | O-RINGD | 2 | |
| R909152647 | O-RINGD | 1 | ||
| R913044948 | O-RINGD | 1 |
