Assembly

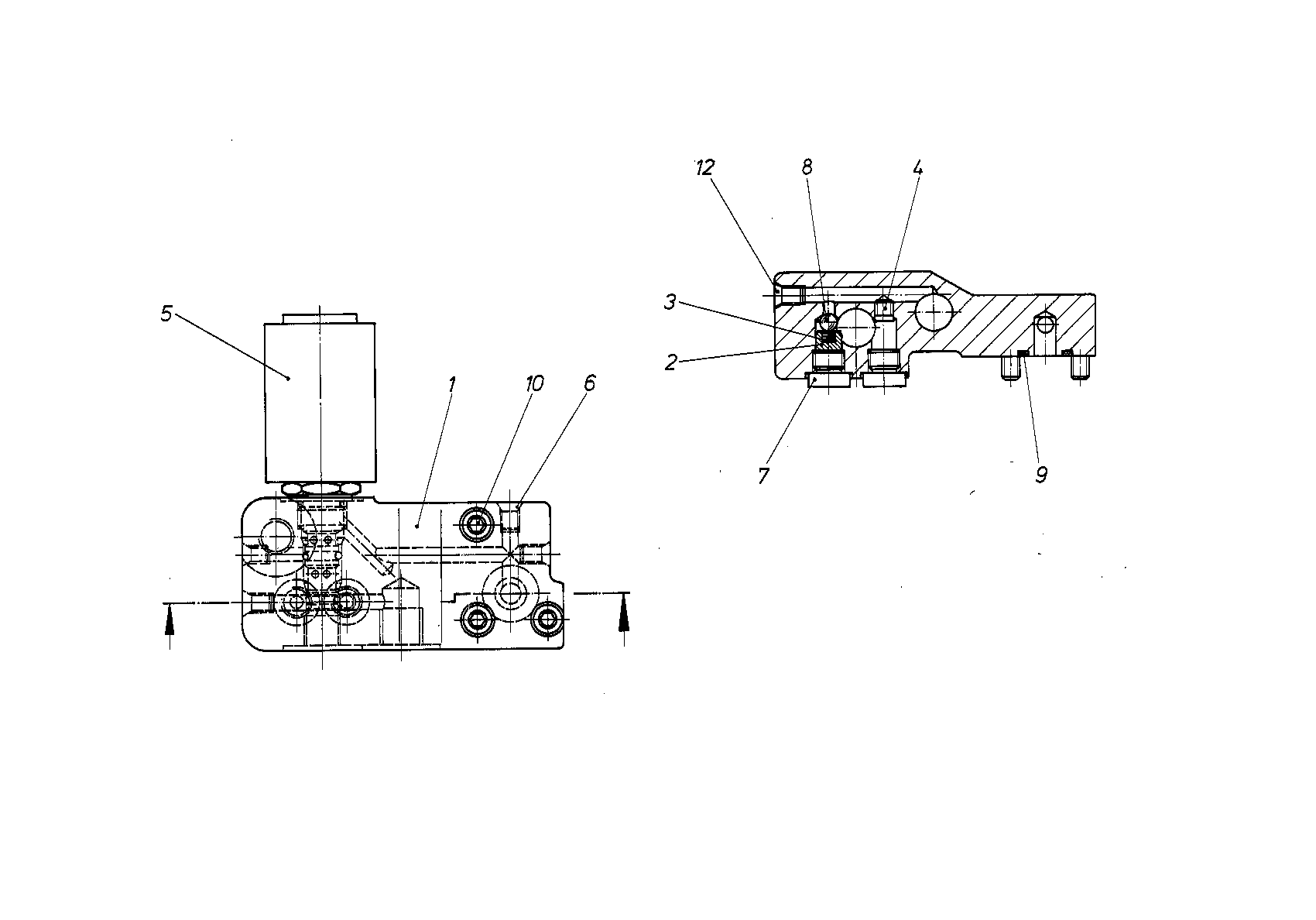

UNLOADING VALVER909600138
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909449582 | VALVE PLATE | 1 | |
| 2 | R909431425 | SPRING BUSH | 1 | |
| 3 | R909431423 | COMPRESSION SPRING | 1 | |
| 4 | R909156491 | NOZZLE | 1 | |
| 5 | R902601844 | SLIDE GATE VALVE Assembly parts list →L | 1 | |
| 6 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 7 | R909156649 | SCREW PLUGD | 1 | |
| R909083260 | BALL | 1 | ||
| 9 | R909156863 | SCREW PLUGD | 1 | |
| R909153880 | DOUBLE BREAK-OFF PLUG | 1 |
