Assembly

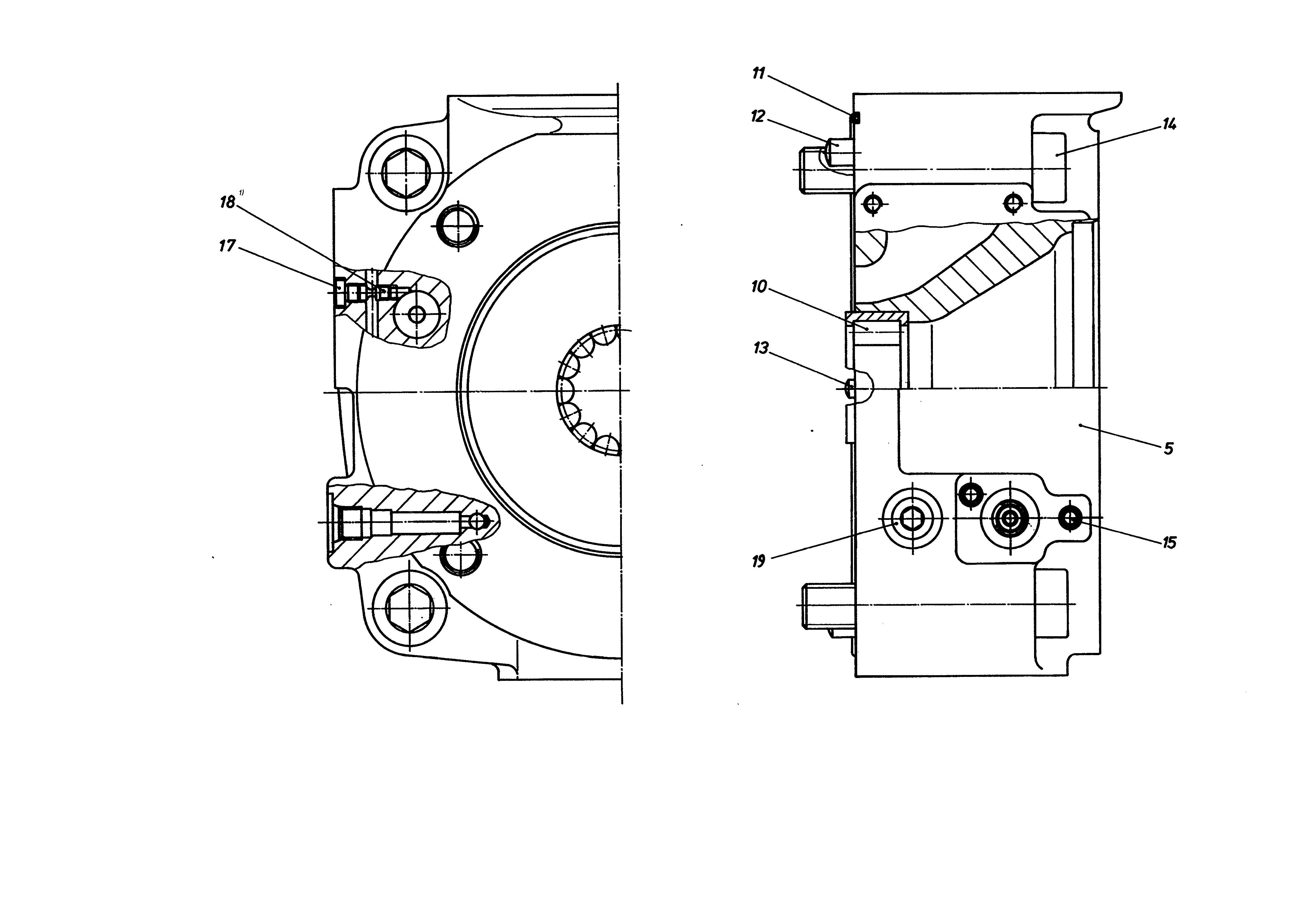

CONNECTION PLATE, RLR909600445
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 5 | R909449839 | CONNECTION PLATE, RL | 1 | |
| R909156745 | CYL. ROLLER BEARING | 1 | ||
| 11 | R909830009 | O-RINGD | 1 | |
| R913009673 | STRAIGHT PIN | 2 | ||
| R909830529 | STRAIGHT PIN | 1 | ||
| R909830008 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909156495 | NOZZLE | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| 98 | R902002469 | SEAL KIT | 1 |
