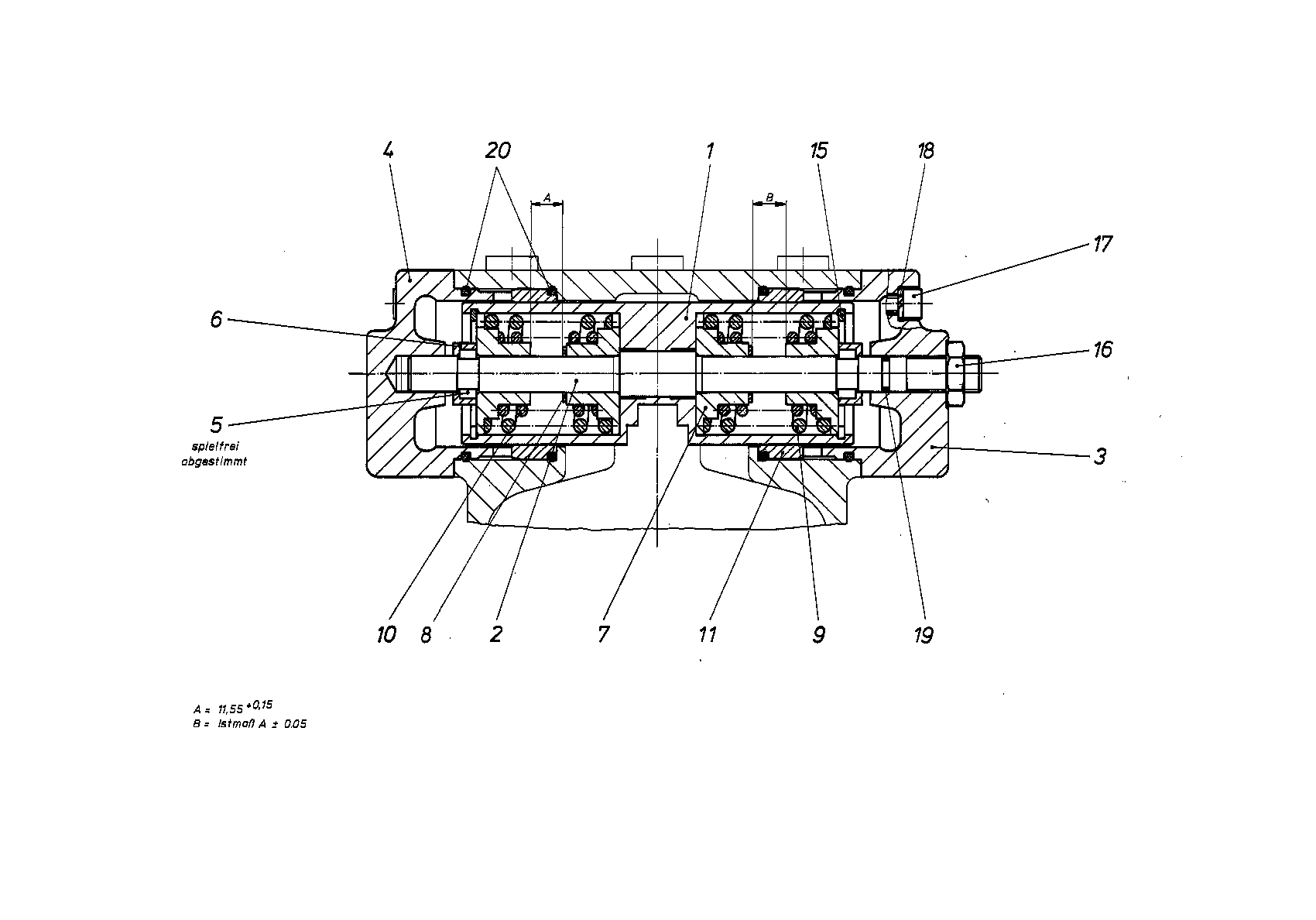

Assembly
CONTROLR909600891
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902002694 | POSITIONING PISTON | 1 | ||
| R909440403 | ROD | 1 | ||
| 3 | R909415207 | COVER | 1 | |
| R909415419 | COVER | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| 6 | R909400470 | SLEEVE | 2 | |
| R909435264 | SPRING DISK | 4 | ||
| R909154476 | SHIM RING | 1 | ||
| R909154477 | SHIM RING | 1 | ||
| R909154725 | SHIM RING | 2 | ||
| R909432246 | COMPRESSION SPRING | 2 | ||
| 10 | R909432247 | COMPRESSION SPRING | 2 | |
| 11 | R909414226 | BUSHING | 2 | |
| 15 | R909083400 | RETAINING RING | 2 | |
| R909154918 | HEXAGON NUT | 1 | ||
| 17 | R909083021 | SOCKET HEAD CAP SCREW | 8 | |
| 18 | R909083249 | SPRING LOCK WASHER | 8 | |
| R909085709 | O-RINGD | 1 | ||
| R909152464 | O-RINGD | 4 |
