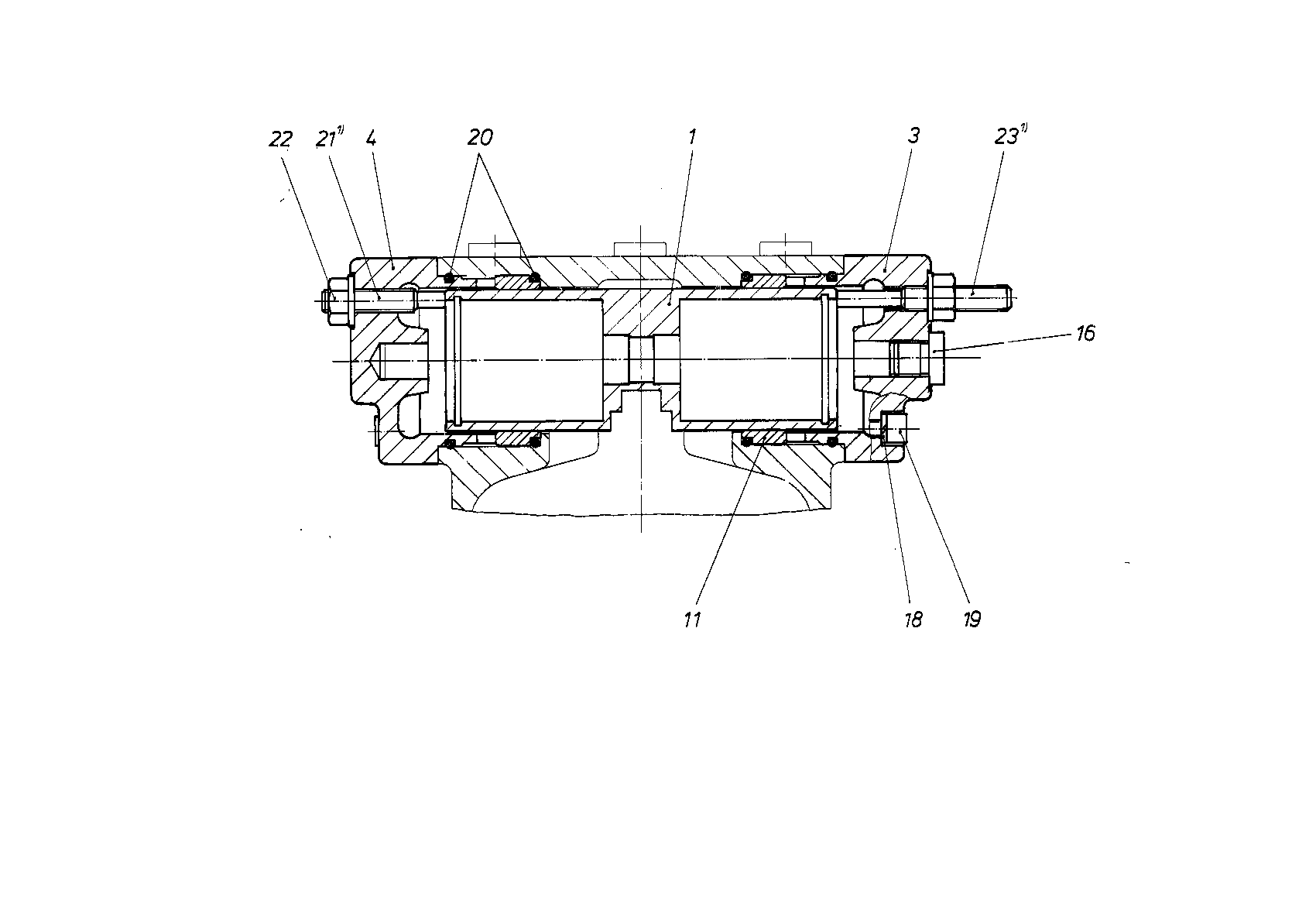

Assembly
CONTROLR909600893
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902002694 | POSITIONING PISTON | 1 | ||
| R909415476 | COVER | 1 | ||
| R909415477 | COVER | 1 | ||
| R909414226 | BUSHING | 2 | ||
| 16 | R909151692 | SCREW PLUGD | 1 | |
| R909083021 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083249 | SPRING LOCK WASHER | 8 | ||
| R902600659 | O-RINGD | 4 | ||
| 21 | R909418633 | SETSCREW | 1 | |
| R909152707 | SEALING NUTD | 2 | ||
| 23 | R909431619 | SETSCREW | 1 |
