Assembly

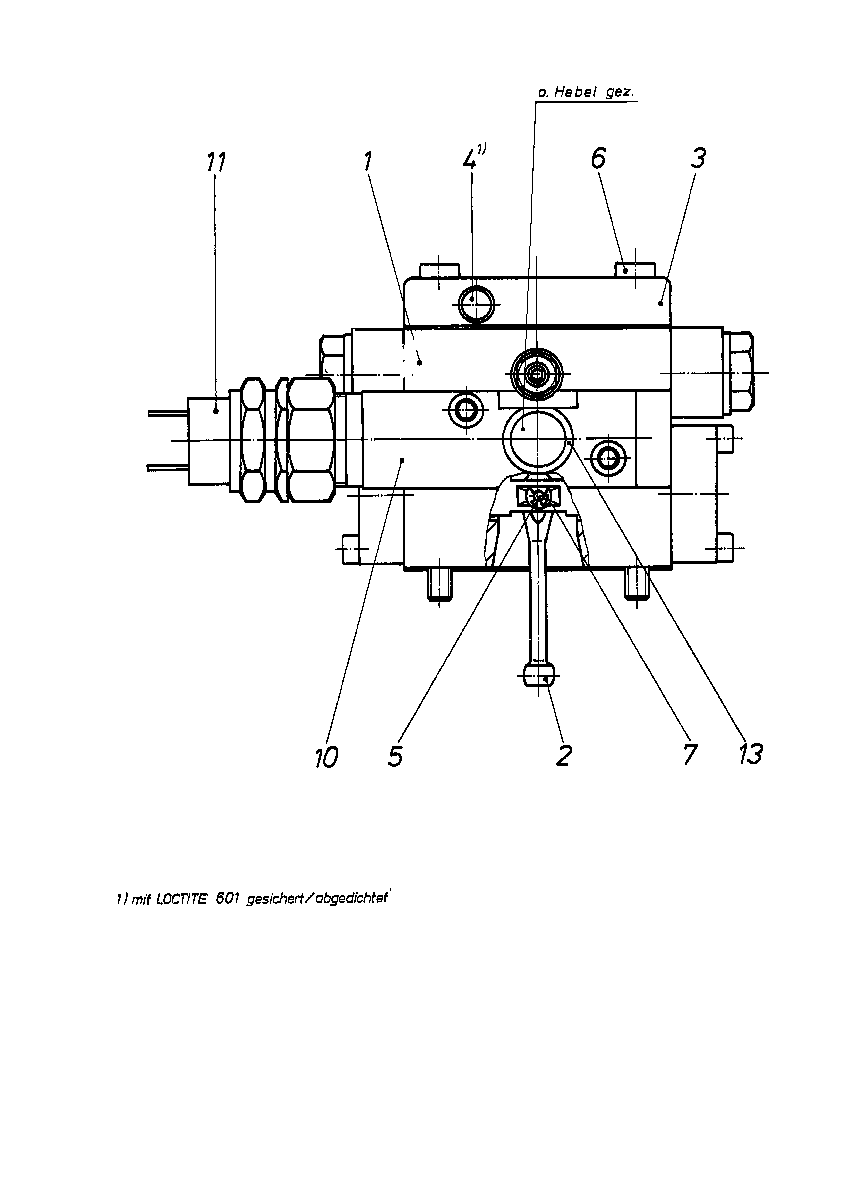

CONTROL MODULER909600946
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909420751 | CONTROL MODULE Assembly parts list →L | 1 | |
| 2 | R909650120 | FEEDBACK LEVER | 1 | |
| R909425592 | COVER | 1 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 5 | R909415995 | BOLT | 1 | |
| R909085701 | SOCKET HEAD CAP SCREW | 4 | ||
| 7 | R909156804 | LOCKING WASHER | 2 | |
| R909420748 | SWITCH ASSEMBLY Assembly parts list →L | 1 | ||
| 11 | R909157043 | FEELER PIN | 1 | |
| R909067290 | WASHER | 1 |
