Assembly
CONTROL MODULER909600966

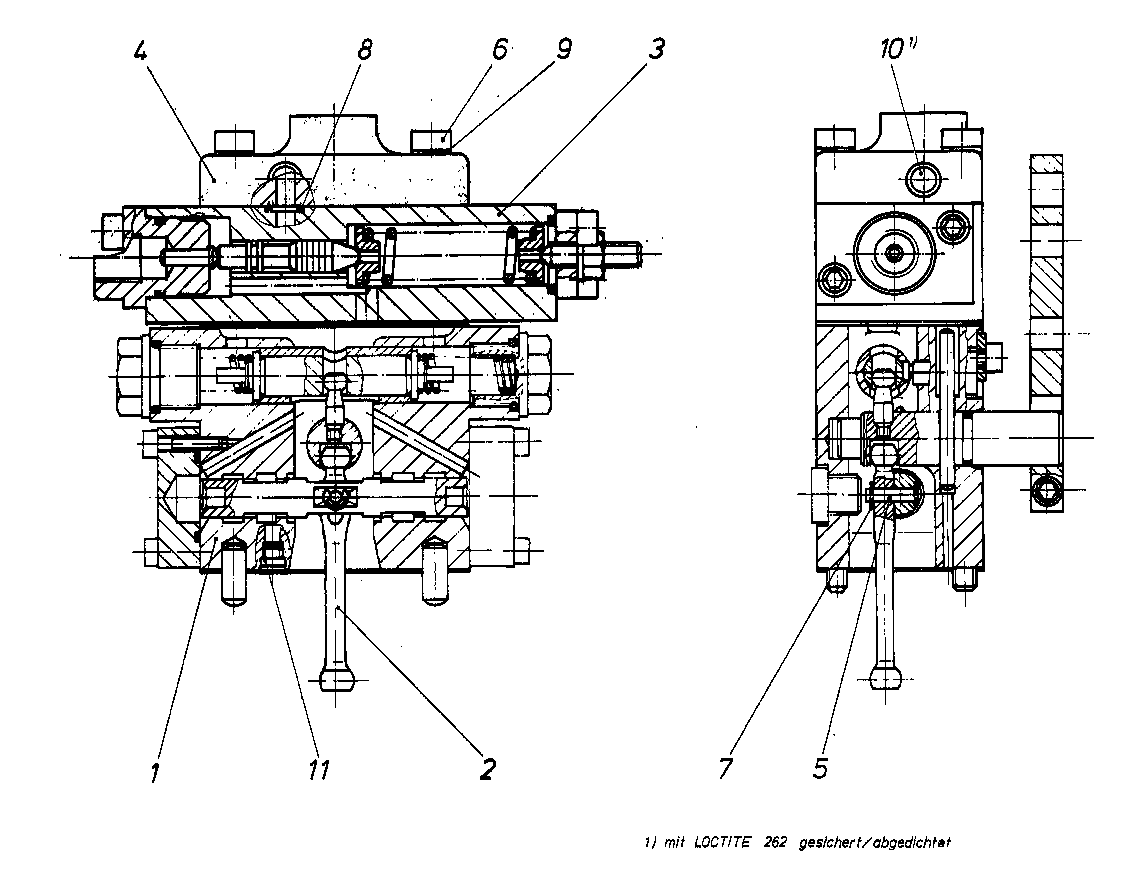

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416005 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909449573 | FEEDBACK LEVER | 1 | ||
| R909427506 | UNLOADING VALVE Assembly parts list →L | 1 | ||
| R909430000 | COVER | 1 | ||
| R909415995 | BOLT | 1 | ||
| R909154611 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156804 | LOCKING WASHER | 2 | ||
| R909086380 | O-RINGD | 1 | ||
| R909083249 | SPRING LOCK WASHER | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 1 |
