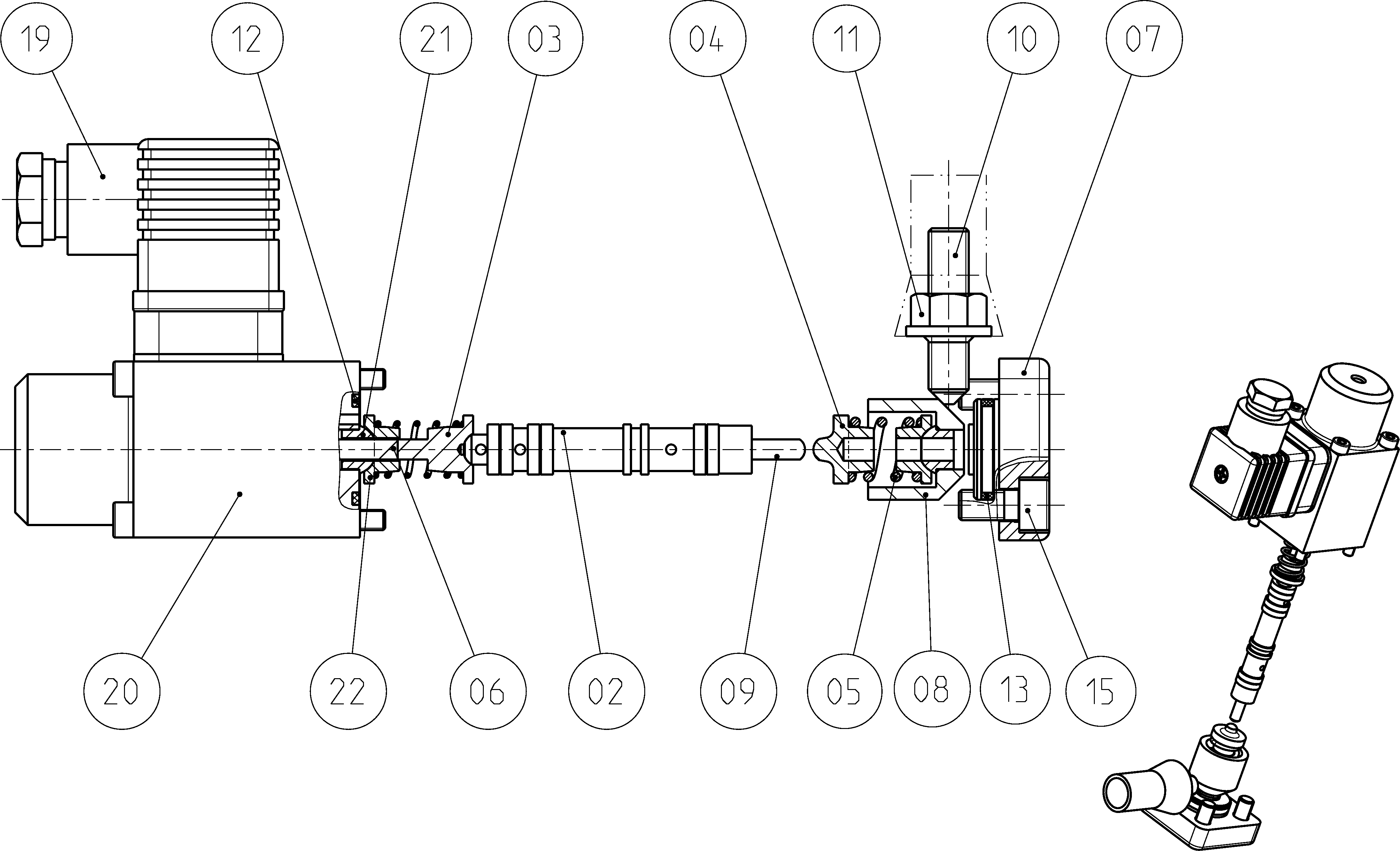

Assembly
CONTROL ELEMENTR909601148
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902022771 | CONTROL PISTON | 1 | ||
| 3 | R909449617 | SPRING BOLT | 1 | |
| R909921097 | SPRING BOLT | 1 | ||
| 5 | R902005694 | COMPRESSION SPRING | 1 | |
| 6 | R909436459 | COMPRESSION SPRING | 1 | |
| R909449721 | COVER | 1 | ||
| 8 | R909921096 | ADJUSTING BUSHING | 1 | |
| 9 | R902237857 | BOLT | 1 | |
| R909086268 | SETSCREW | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083737 | O-RINGD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 4 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909441692 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R909449619 | SPRING WASHER | 2 | ||
| R909449618 | SPRING DISK | 2 |
