Assembly

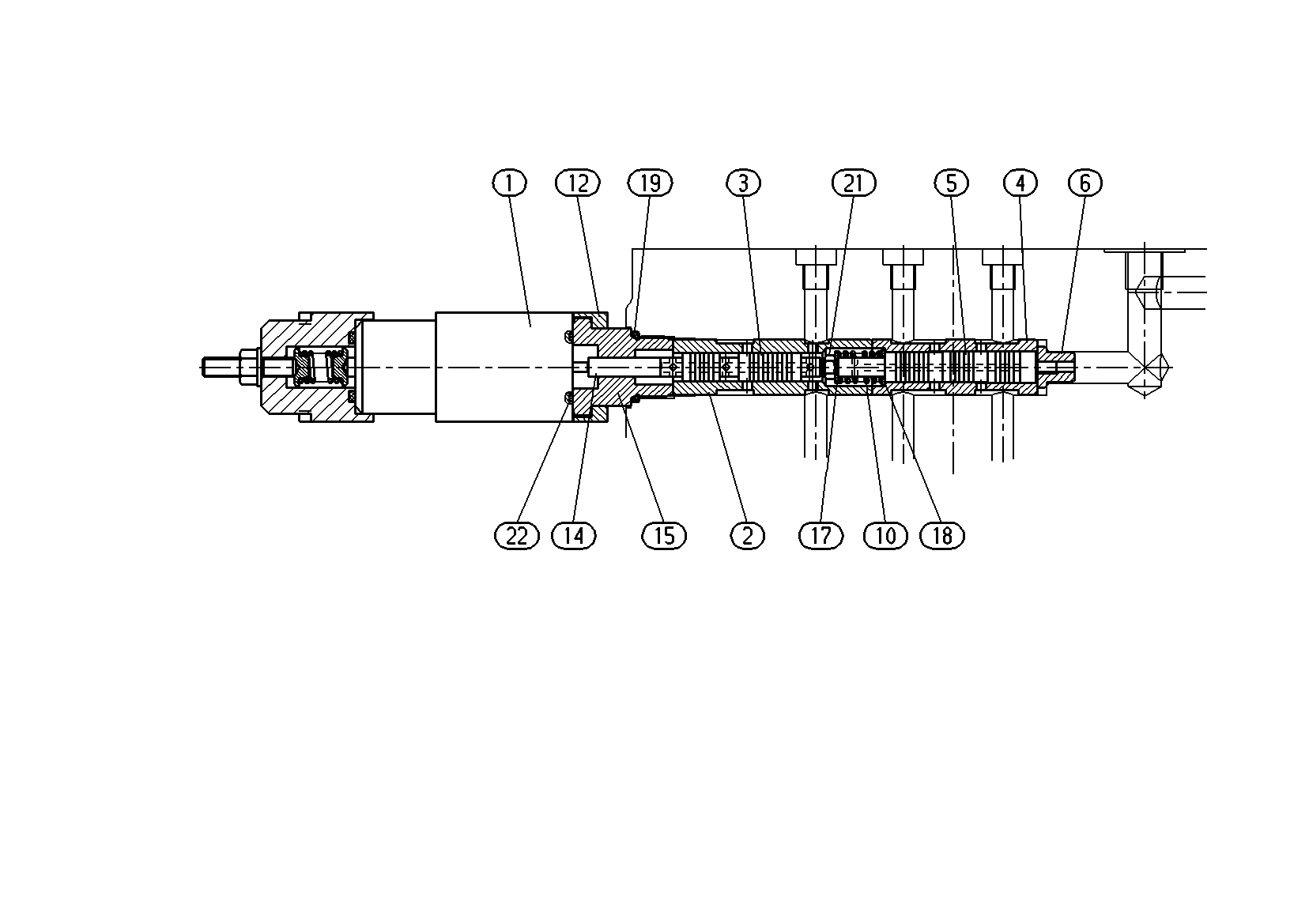

UNLOADING VALVER909601655
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909601374 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | |
| R909921431 | CONTROL SLEEVE | 1 | ||
| R909921253 | CONTROL PISTON | 1 | ||
| R909443924 | MEASURING BUSHING | 1 | ||
| 5 | R909443925 | MEASURING PISTON | 1 | |
| R909443926 | PLUG | 1 | ||
| R909413991 | COMPRESSION SPRING | 1 | ||
| 12 | R909921432 | MOUNTING FLANGE | 1 | |
| R909921433 | PIN | 1 | ||
| R909921434 | SCREW PLUG | 1 | ||
| R909157955 | SHIM RING | 1 | ||
| R909157934 | SHIM RING | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909083609 | HEXAGON NUT | 1 | ||
| R909083737 | O-RINGD | 1 |
