Assembly

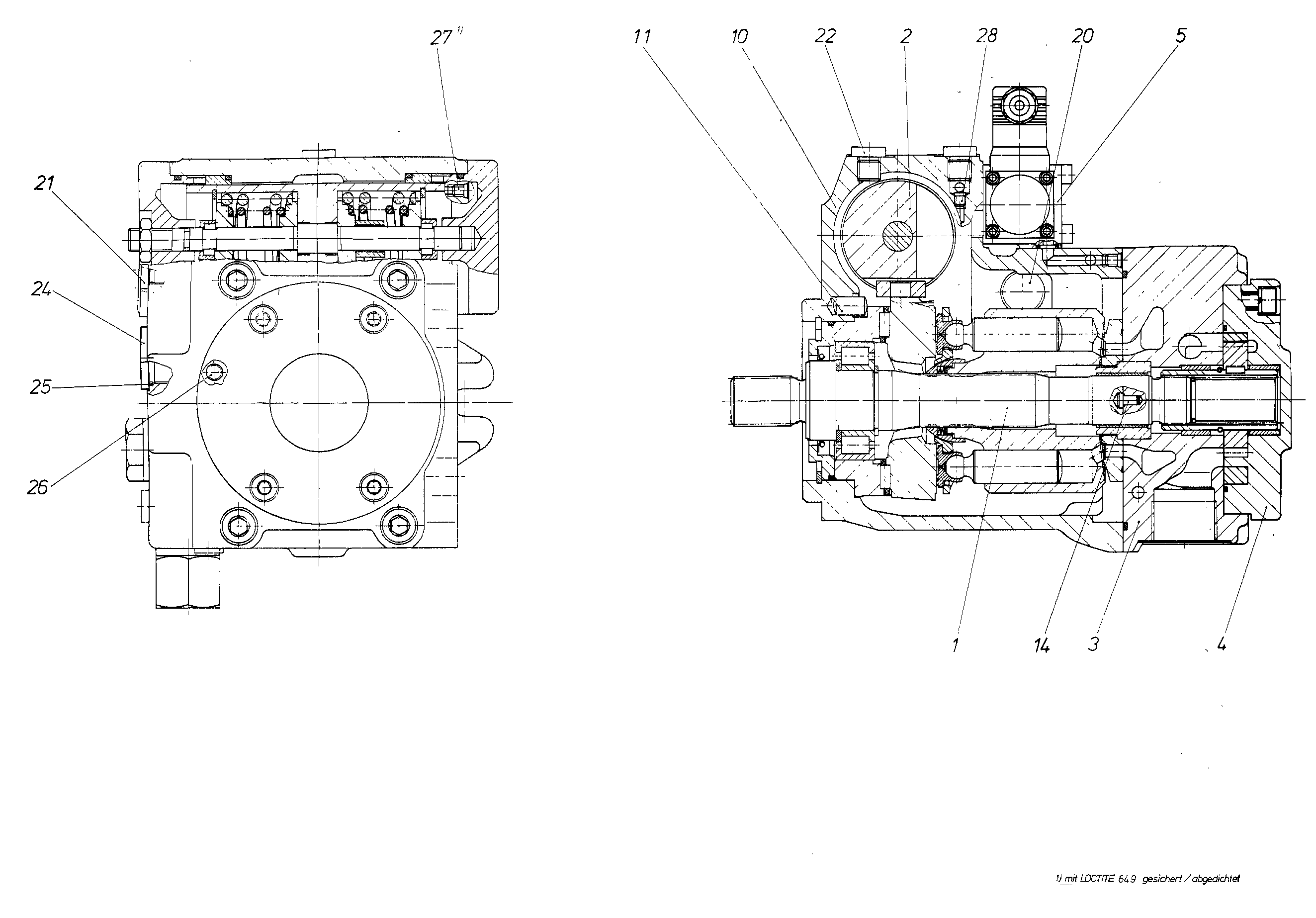

AXIAL-PISTON PUMPR909601689
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429854 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437423 | CONTROL Assembly parts list →L | 1 | ||
| R909441070 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902080171 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909441780 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909440579 | HOUSING | 1 | ||
| R909430641 | POITIONING PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156491 | NOZZLE | 2 |
