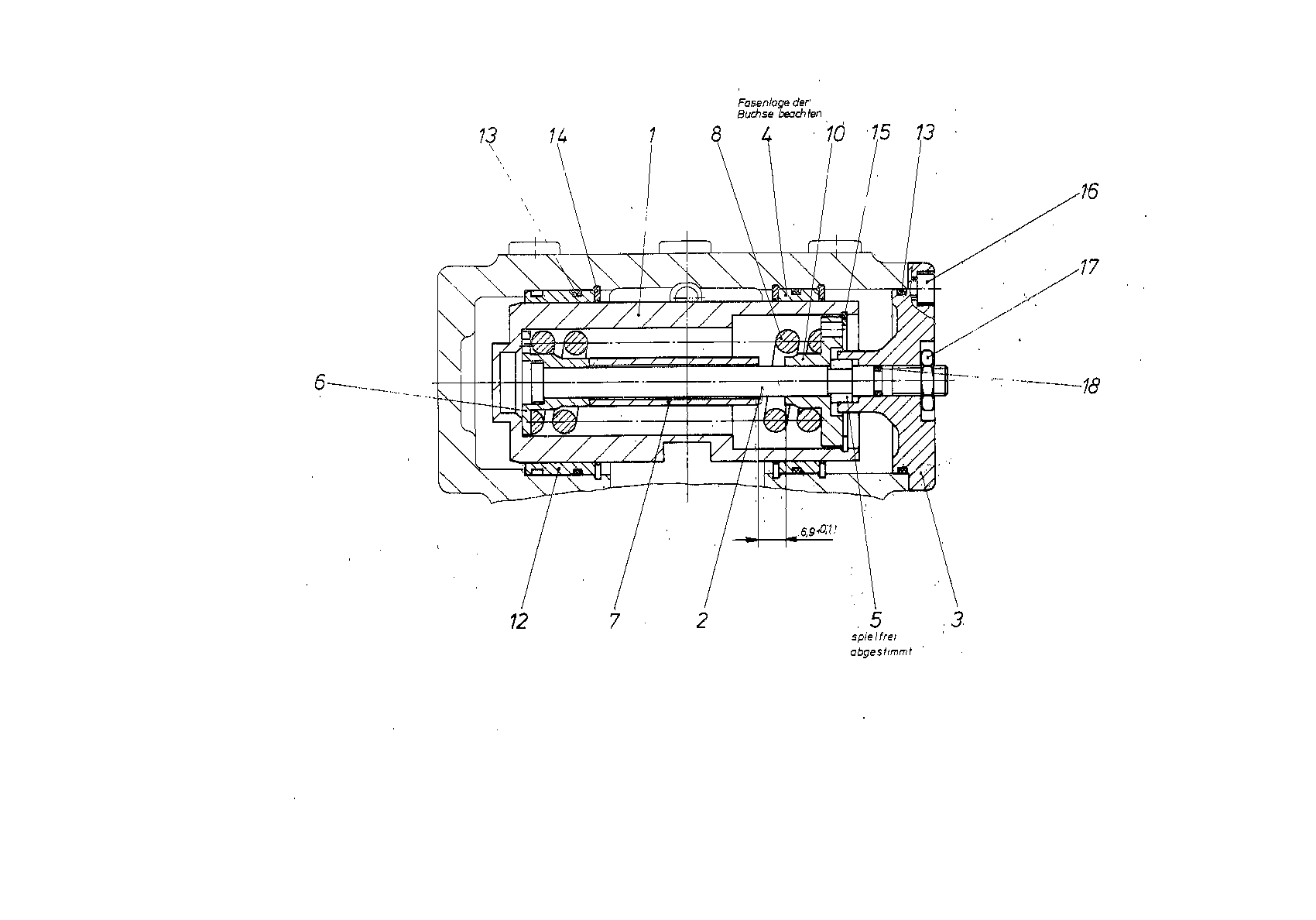

Assembly
CONTROLR909602175
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909651240 | POSITIONING PISTON | 1 | |
| 2 | R909440855 | ROD | 1 | |
| 3 | R902272172 | COVER | 1 | |
| R909436218 | BUSHINGD | 1 | ||
| 5 | R909436219 | RING | 1 | |
| 5 | R909436220 | RING | 1 | |
| 5 | R909436221 | RING | 1 | |
| 5 | R909436222 | RING | 1 | |
| 5 | R909436223 | RING | 1 | |
| 5 | R909436224 | RING | 1 | |
| 6 | R902035529 | SPRING DISK | 1 | |
| R909449850 | SPACER BUSHING | 1 | ||
| R909921848 | SPACER BUSHING | 1 | ||
| R909921849 | SPACER BUSHING | 1 | ||
| R902035532 | COMPRESSION SPRING | 1 | ||
| R902035531 | SPRING DISK | 1 | ||
| R909922247 | BUSHING | 1 | ||
| R909083780 | O-RINGD | 3 | ||
| R909157231 | V-RING | 3 | ||
| R909085359 | RETAINING RING | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R902017521 | HEXAGON NUT | 1 | |
| 18 | R909086380 | O-RINGD | 1 |
