Assembly

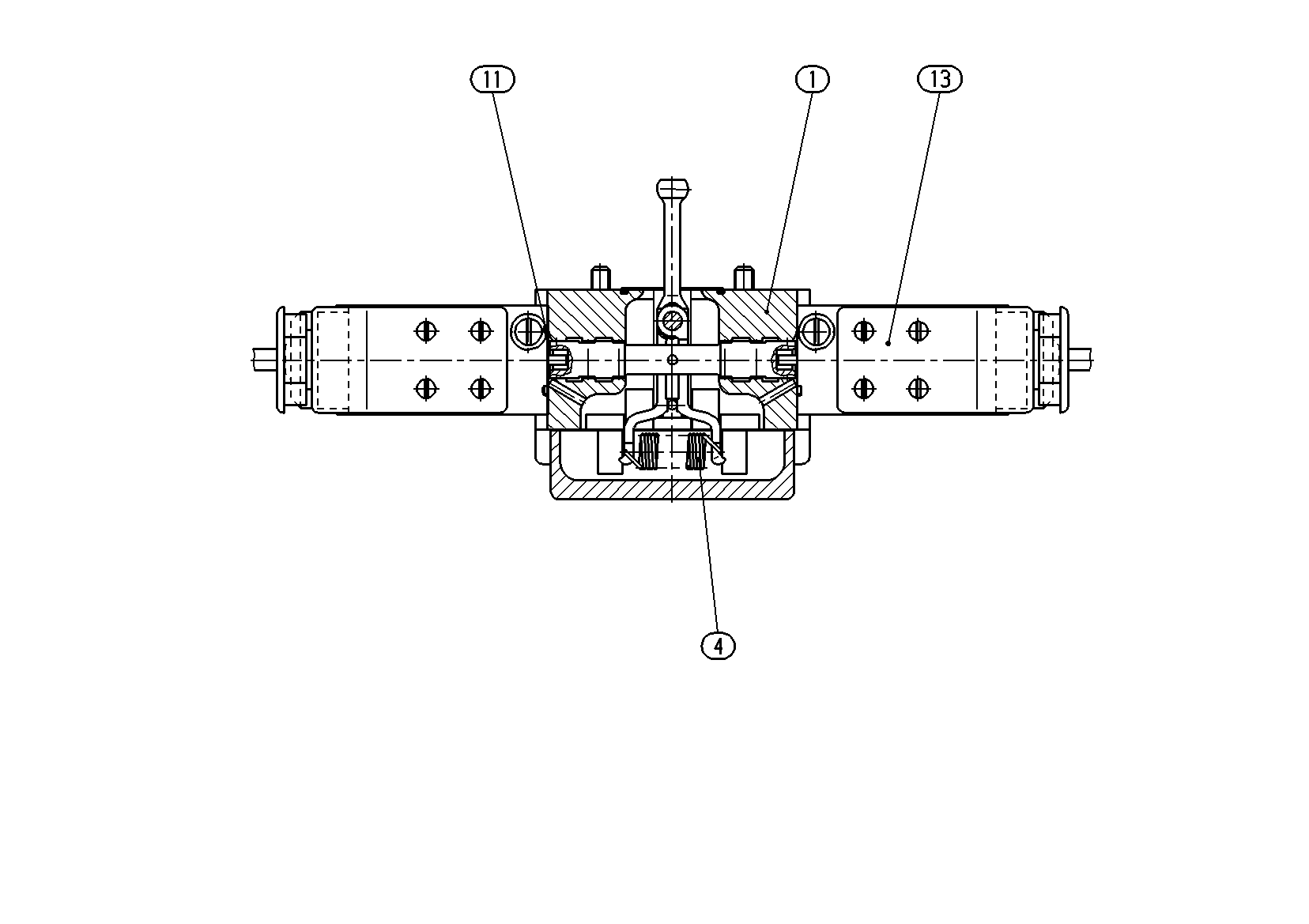

CONTROL UNITR909602243
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909602167 | CONTROL MODULE Assembly parts list →L | 1 | ||
| 3 | R909443201 | COVER | 1 | |
| 4 | R909445713 | EXTENSION SPRING | 1 | |
| 5 | R909651478 | SEALD | 1 | |
| 9 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| 10 | R902600641 | O-RINGD | 1 | |
| R909083737 | O-RINGD | 2 | ||
| 12 | R909086332 | O-RINGD | 5 | |
| R909446706 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | ||
| 14 | R909086380 | O-RINGD | 1 | |
| 98 | R902002418 | SEAL KIT | 1 |
