Assembly

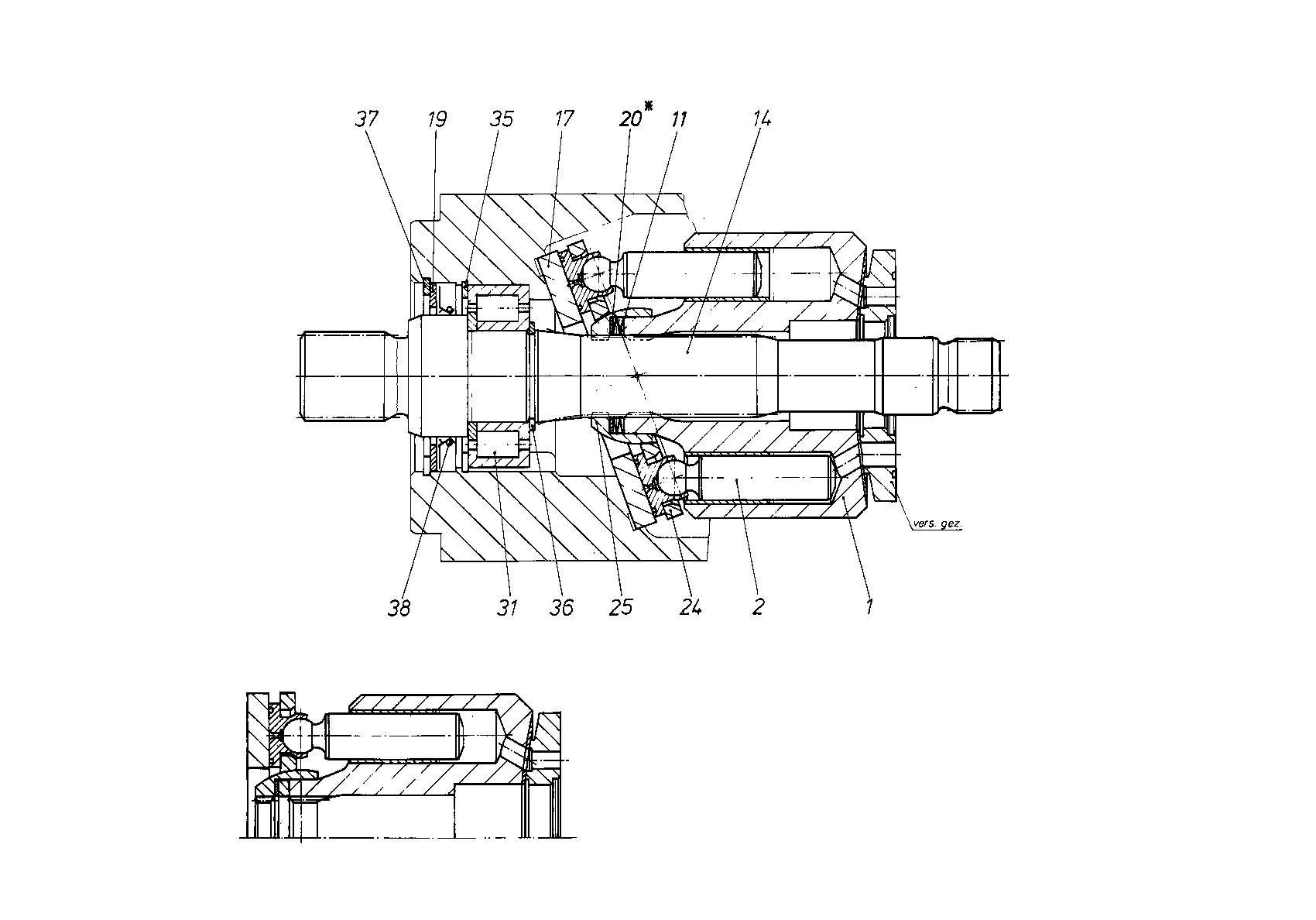

ROTARY GROUPR909602373
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909444716 | CYLINDER Assembly parts list →L | 1 | ||
| R909435304 | PISTON PAD | 9 | ||
| R902121235 | CUP-SPRING STACK | 1 | ||
| R909921866 | DRIVE SHAFT | 1 | ||
| R902157450 | SLIDING DISC | 1 | ||
| R909431297 | SUPPORTING DISC | 1 | ||
| R909432098 | SHIM RING | 1 | ||
| R909432099 | SHIM RING | 1 | ||
| R909432100 | SHIM RING | 1 | ||
| R909432101 | SHIM RING | 1 | ||
| R902205450 | RETAINING PLATE | 1 | ||
| R909432260 | RETAINING BALL | 1 | ||
| R909156606 | CYL. ROLLER BEARING | 1 | ||
| R909151260 | RETAINING RING | 1 | ||
| R909083358 | RETAINING RING | 1 | ||
| R909083408 | RETAINING RING | 1 | ||
| R902601819 | ROTARY SHAFT LIP SEALD | 1 |
