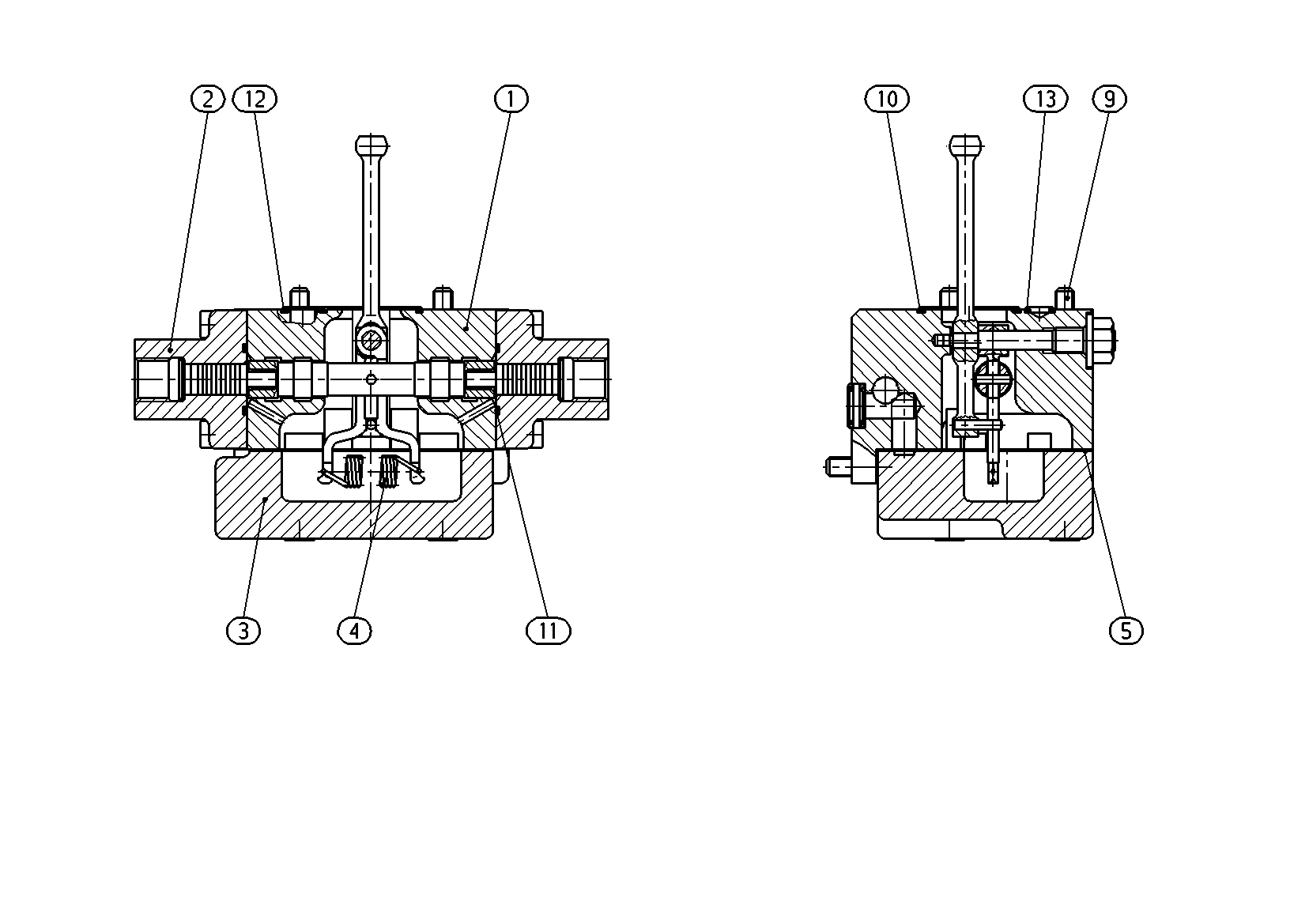

Assembly
CONTROL MODULER909602446
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909602442 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909446129 | CONTROL MODULE ASSEMBLY Assembly parts list →L | 2 | ||
| R909445301 | CONNECTION COVER | 1 | ||
| R909921875 | EXTENSION SPRING | 1 | ||
| 5 | R909651478 | SEALD | 1 | |
| R909086491 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600641 | O-RINGD | 1 | ||
| 11 | R909083737 | O-RINGD | 2 | |
| R909086332 | O-RING | 5 | ||
| R909086380 | O-RINGD | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
