Assembly

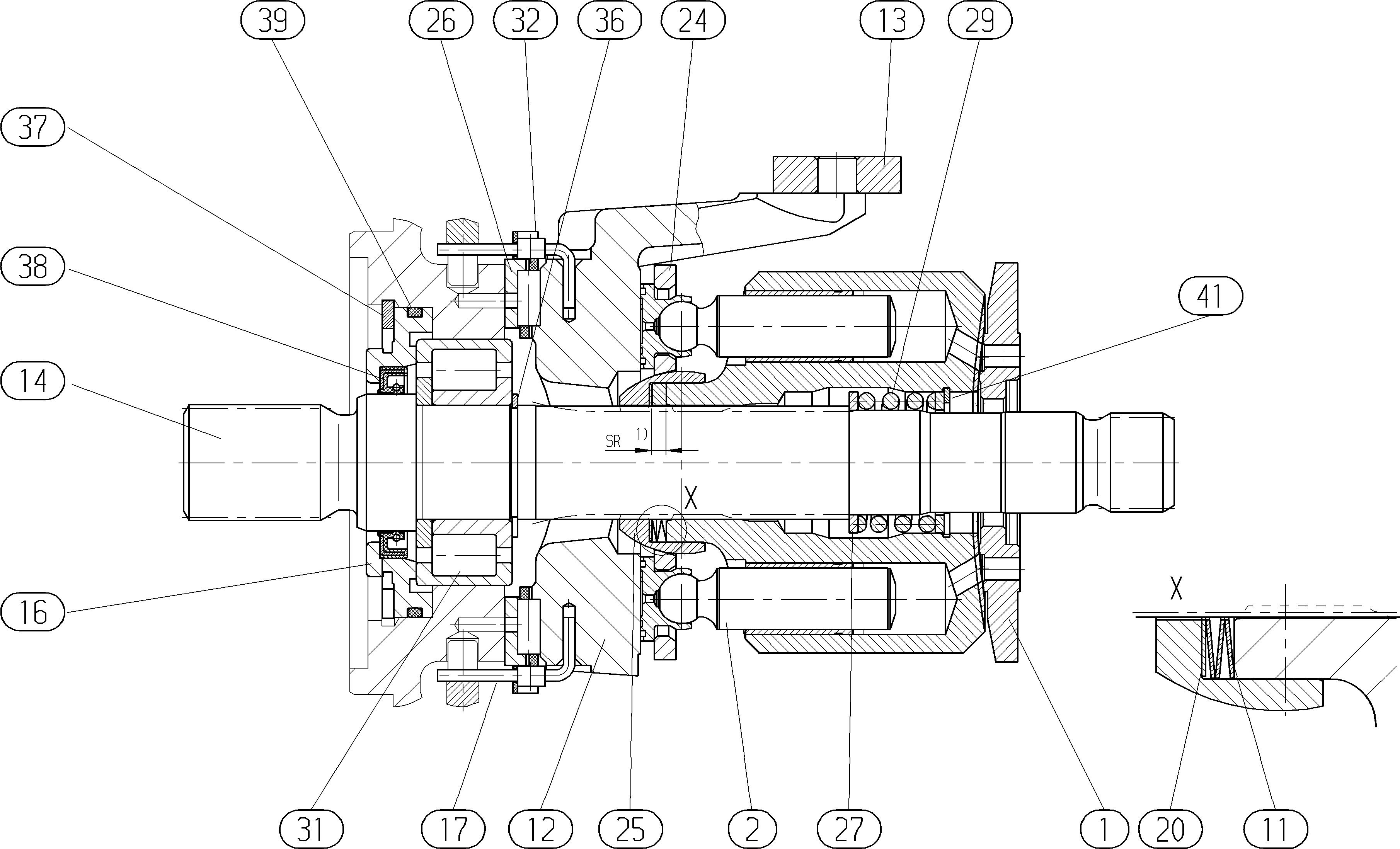

ROTARY GROUPR909602685
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902012944 | CYLINDER Assembly parts list →L | 1 | ||
| R909431514 | PISTON PAD | 9 | ||
| R902121243 | CUP-SPRING STACK | 1 | ||
| R909443586 | CRADLE | 1 | ||
| R909449509 | SLIDER | 1 | ||
| R909922003 | DRIVE SHAFT | 1 | ||
| R909419824 | LOCKING RINGD | 1 | ||
| R909413920 | WIRE | 2 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R902205399 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R902066597 | BEARING SHELL PAIR | 1 | ||
| R909922004 | WASHER | 2 | ||
| R909921997 | COMPRESSION SPRING | 1 | ||
| R909156605 | CYL. ROLLER BEARING | 1 | ||
| R909156625 | CAGE PAIR | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R909083410 | RETAINING RING | 1 | ||
| R909153249 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909150068 | O-RINGD | 1 | ||
| R909083393 | RETAINING RING | 1 |
