Assembly

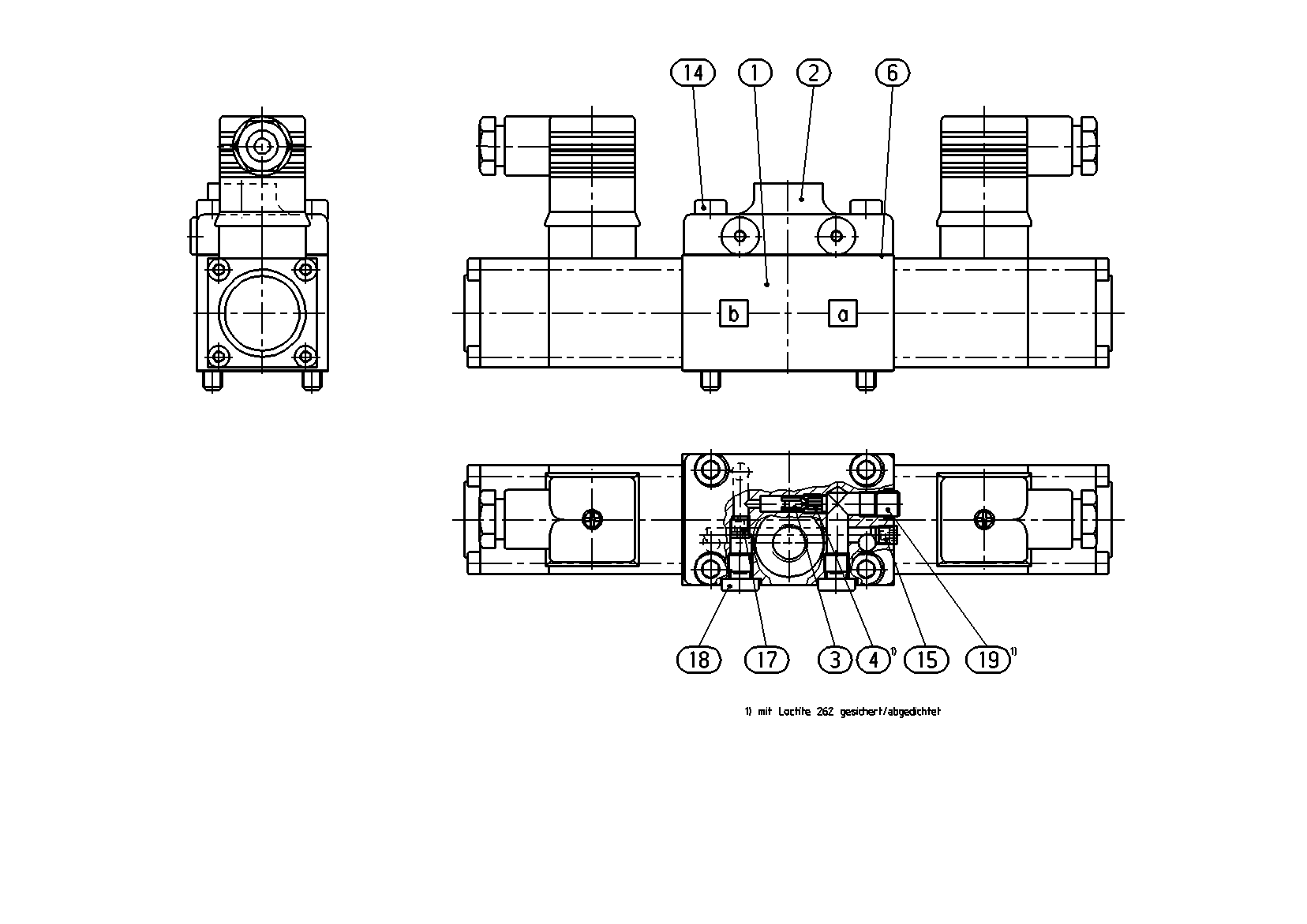

DIRECTIONAL-CONTROL VALVER909602911
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909602910 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909650009 | COVER | 1 | ||
| R909412613 | THROTTLE PIN | 1 | ||
| R909412525 | SETSCREW | 1 | ||
| R909440375 | SEALD | 2 | ||
| R909083029 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600705 | PLUG | 1 | ||
| 17 | R909156494 | NOZZLE | 1 | |
| R909154024 | SCREW PLUG | 2 | ||
| R909153572 | SCREW PLUG | 1 |
