Assembly

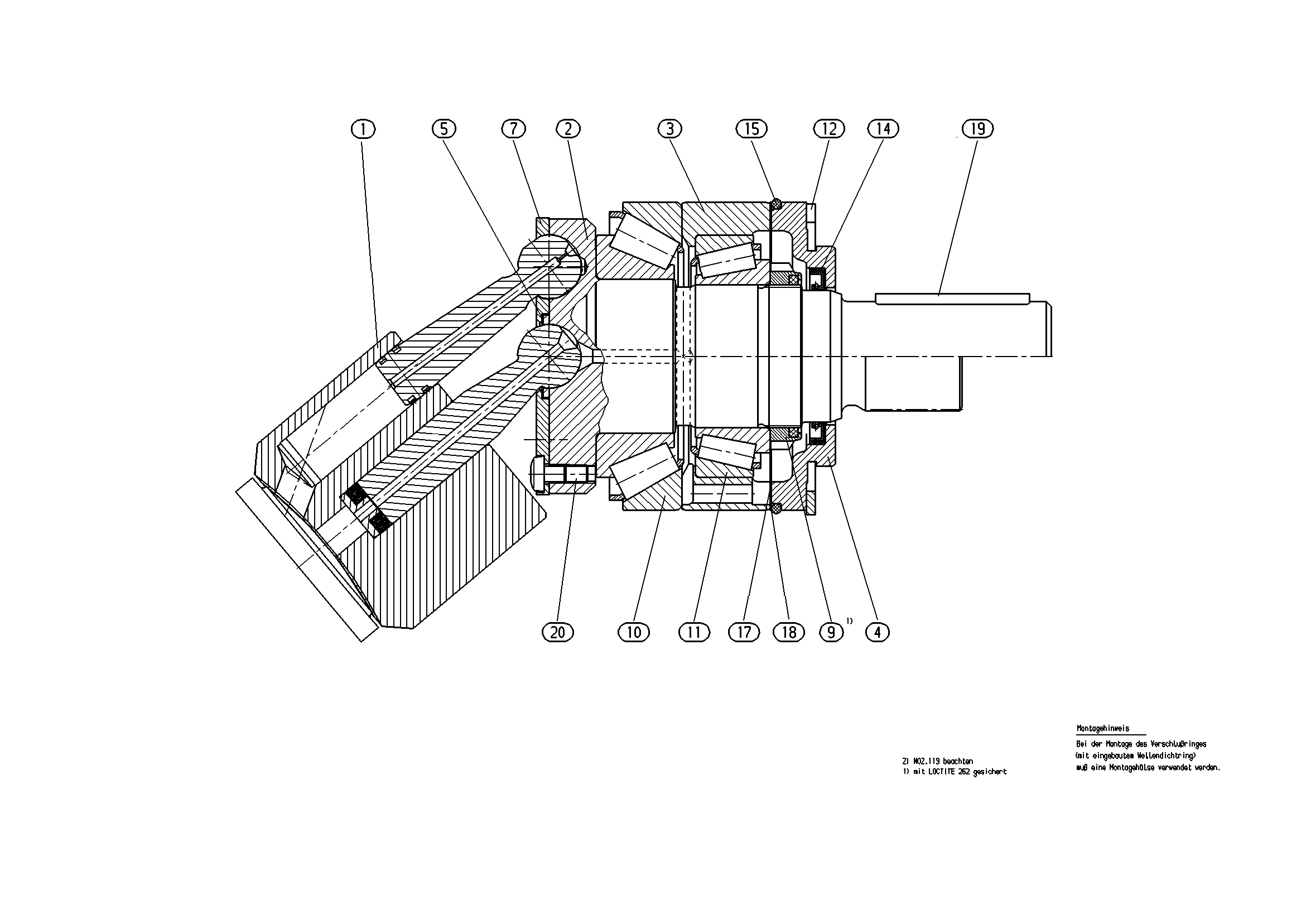

ROTARY GROUPR909603035
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442887 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909444456 | DRIVE SHAFT | 1 | ||
| R909430089 | BEARING RING | 1 | ||
| R909404384 | LOCKING RINGD | 1 | ||
| R909409186 | WASHER | 1 | ||
| R909444065 | RETAINING PLATE | 1 | ||
| 9 | R913037933 | SLOTTED ROUND NUT | 1 | |
| R909154344 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909152775 | TAPERED-ROLLER BEARING | 1 | |
| R909083421 | RETAINING RING | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909086635 | O-RINGD | 1 | ||
| R909154260 | SHIM RING | 2 | ||
| R909087601 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 7 |
