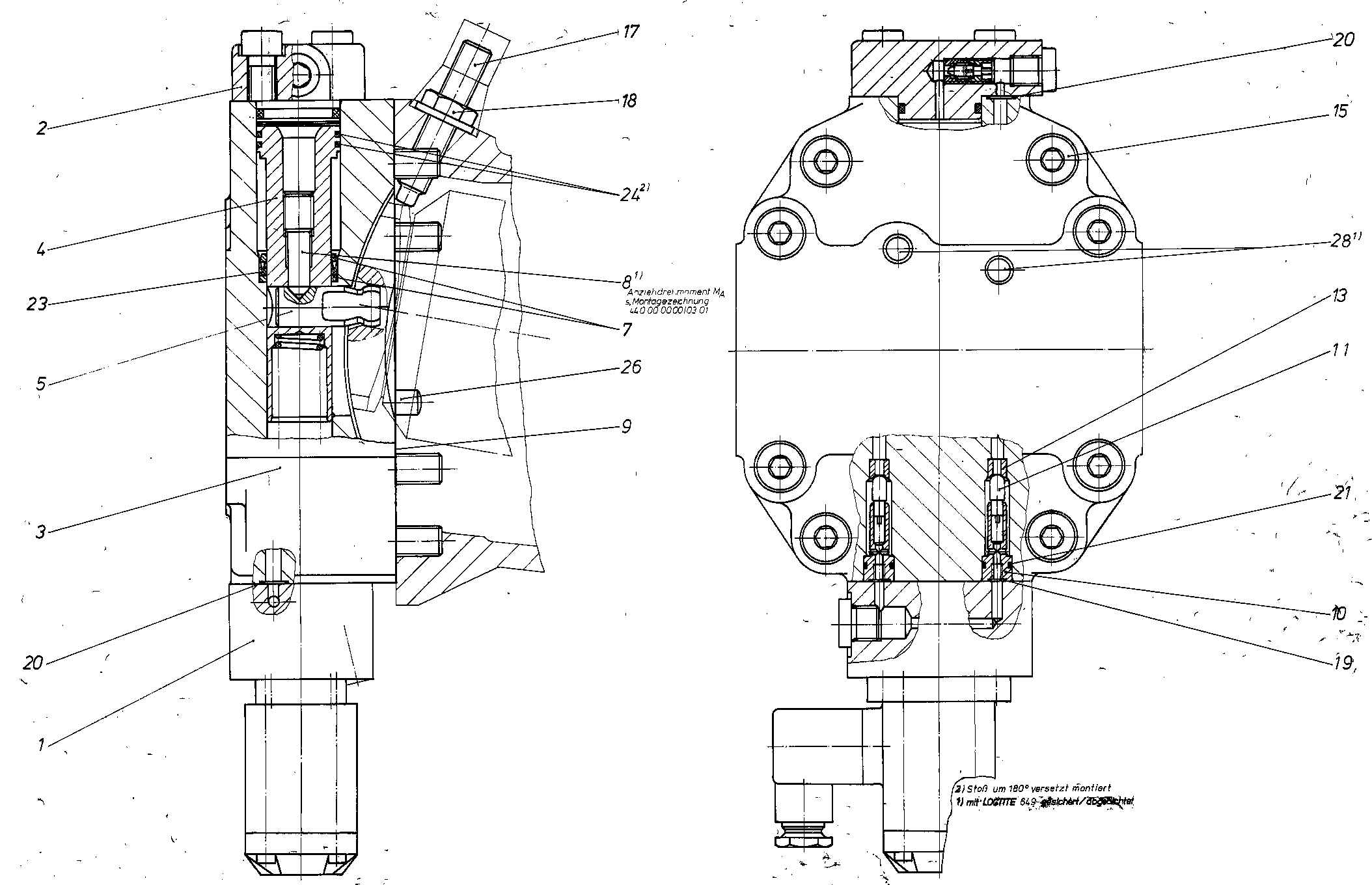

Assembly
CONTROLR909603083
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446119 | CONTROL PART Assembly parts list →L | 1 | ||
| R909442500 | COVER Assembly parts list →L | 1 | ||
| R909422946 | COVER PLATE | 1 | ||
| R909422948 | POSITIONING PISTON | 1 | ||
| R909422949 | POSITIONING STUD | 1 | ||
| R909422950 | BACKUP RING | 2 | ||
| R909445016 | SETSCREW | 1 | ||
| R902011855 | SEALD | 1 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446862 | SETSCREW Assembly parts list →L | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909084469 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| R909156540 | ROD SEALD | 1 | ||
| R902602841 | STEEL SEALING RINGD | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 29 | R902075345 | PLUG | 2 |
