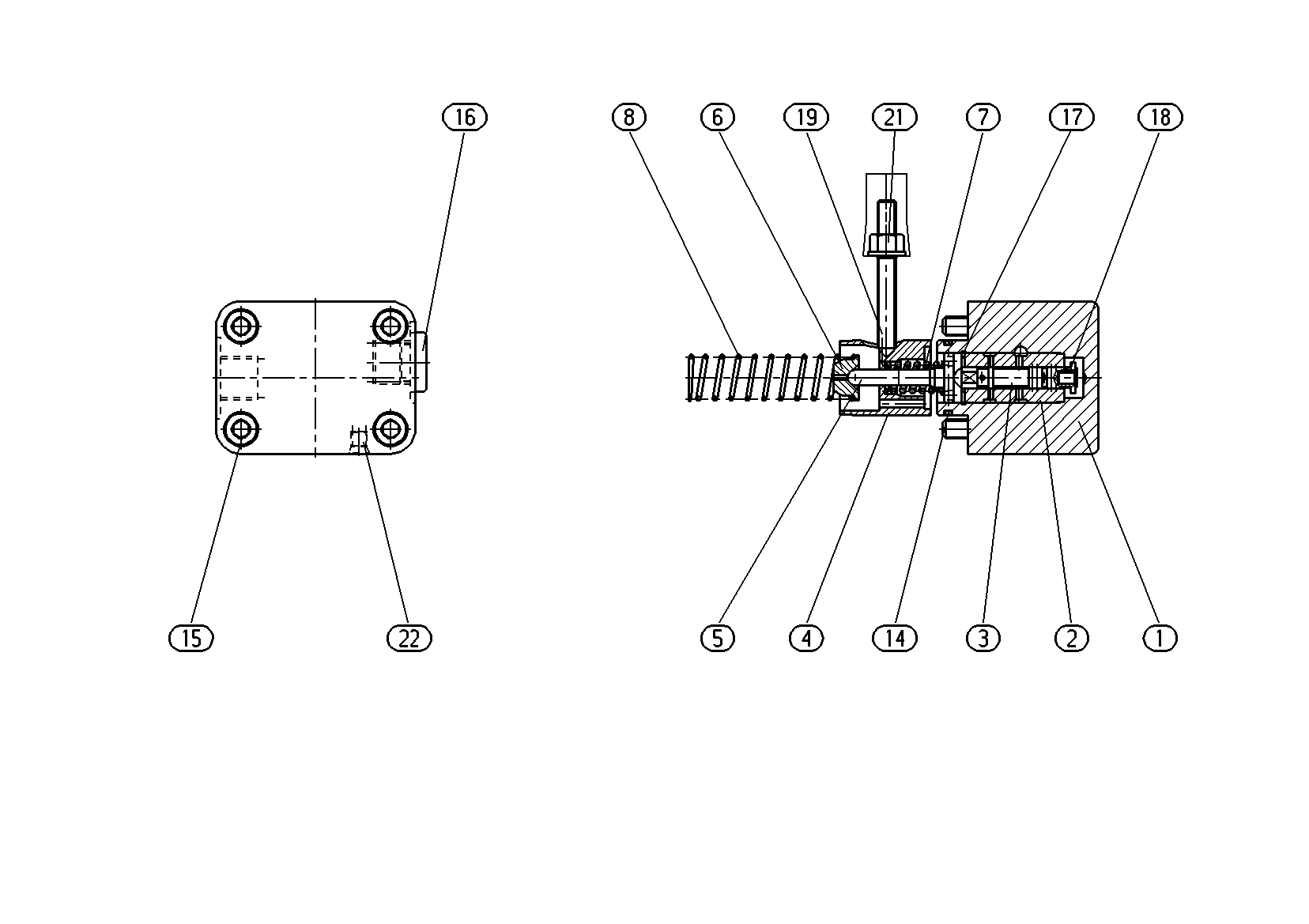

Assembly
CONTROL PARTR909603102
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909421399 | CONTROL HOUSING | 1 | |
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R909445267 | ADJUSTING BUSHING | 1 | ||
| 5 | R909418761 | SPRING BOLT | 1 | |
| R909431652 | SPRING DISK | 1 | ||
| R909412398 | COMPRESSION SPRING | 1 | ||
| R909449737 | COMPRESSION SPRING | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909083488 | SETSCREW | 1 | ||
| R909439043 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
