Assembly

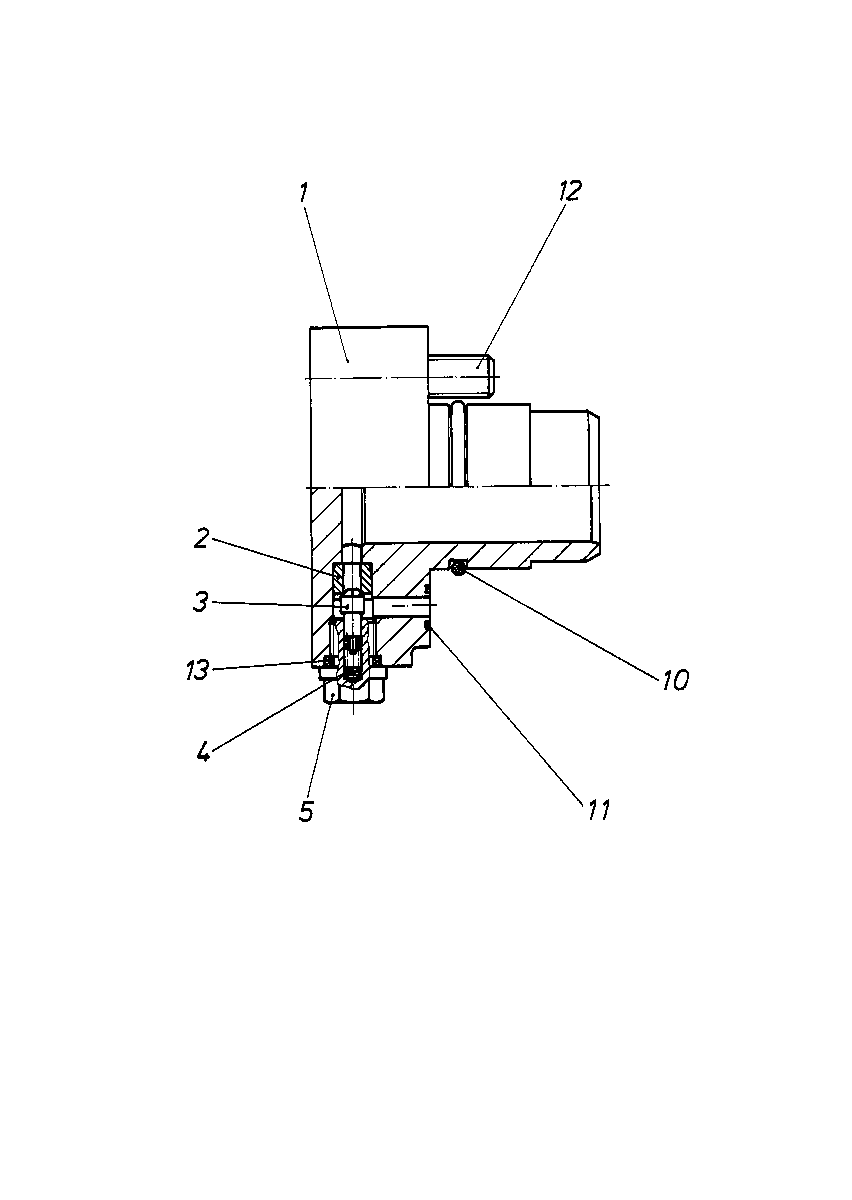

GUIDE COVERR909603258
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909449966 | GUIDE COVER | 1 | |
| 2 | R909425801 | BUSHING | 1 | |
| 3 | R909440104 | VALVE CONE | 1 | |
| 4 | R909426948 | COMPRESSION SPRING | 1 | |
| 5 | R902035187 | SCREW PLUG | 1 | |
| R909084890 | O-RINGD | 1 | ||
| 11 | R909085709 | O-RINGD | 1 | |
| R909083090 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083749 | O-RINGD | 1 |
