Assembly

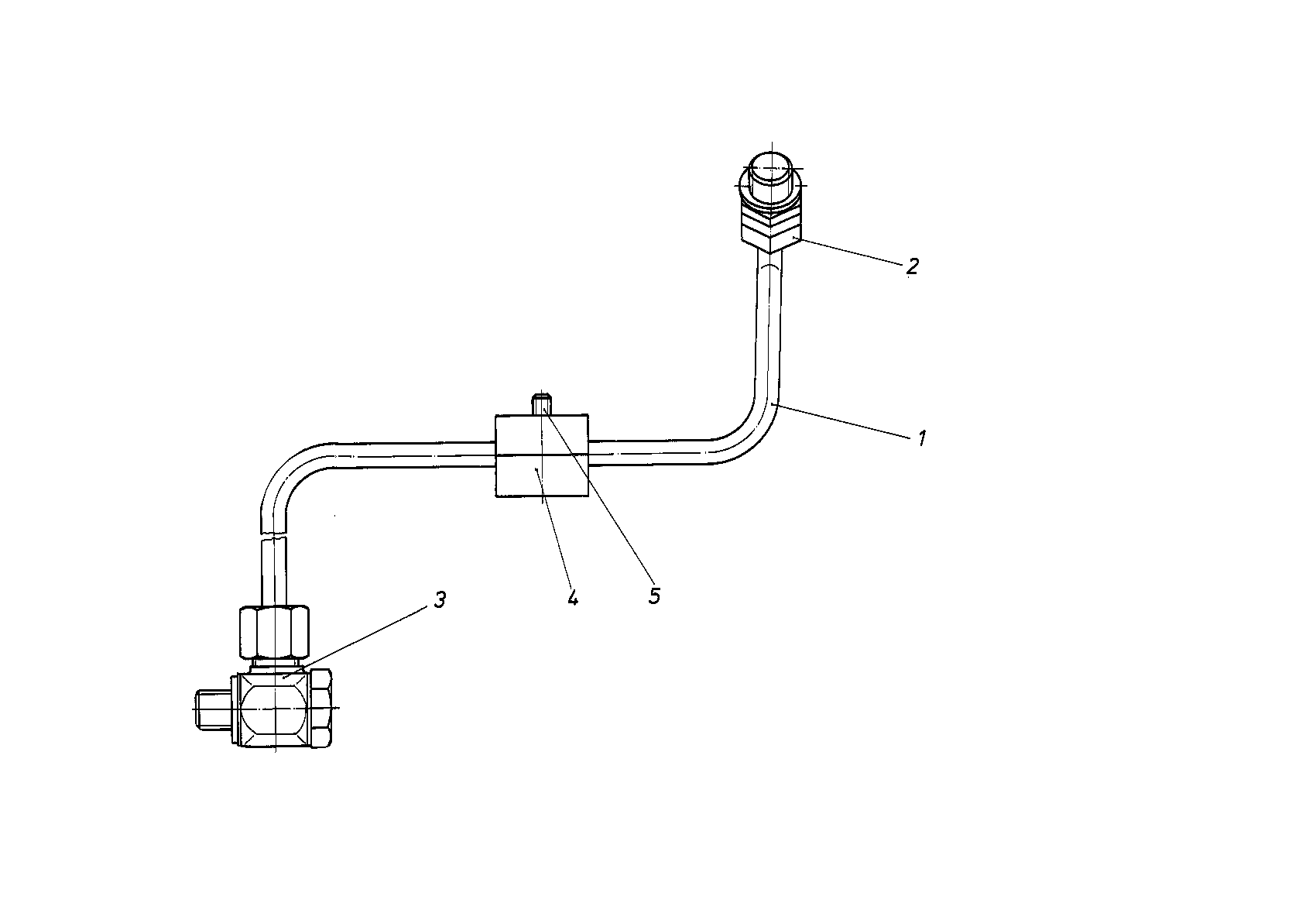

HYDRAULIC LINER909603493
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909921191 | PIPE | 1 | ||
| 2 | R909156790 | MALE CONNECTOR | 1 | |
| 3 | R909156779 | THREADED FASTENER Assembly parts list →L | 1 | |
| 4 | R909152640 | CLAMP | 2 | |
| 5 | R909083023 | SOCKET HEAD CAP SCREW | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909921191 | PIPE | 1 | ||
| 2 | R909156790 | MALE CONNECTOR | 1 | |
| 3 | R909156779 | THREADED FASTENER Assembly parts list →L | 1 | |
| 4 | R909152640 | CLAMP | 2 | |
| 5 | R909083023 | SOCKET HEAD CAP SCREW | 1 |
