Assembly

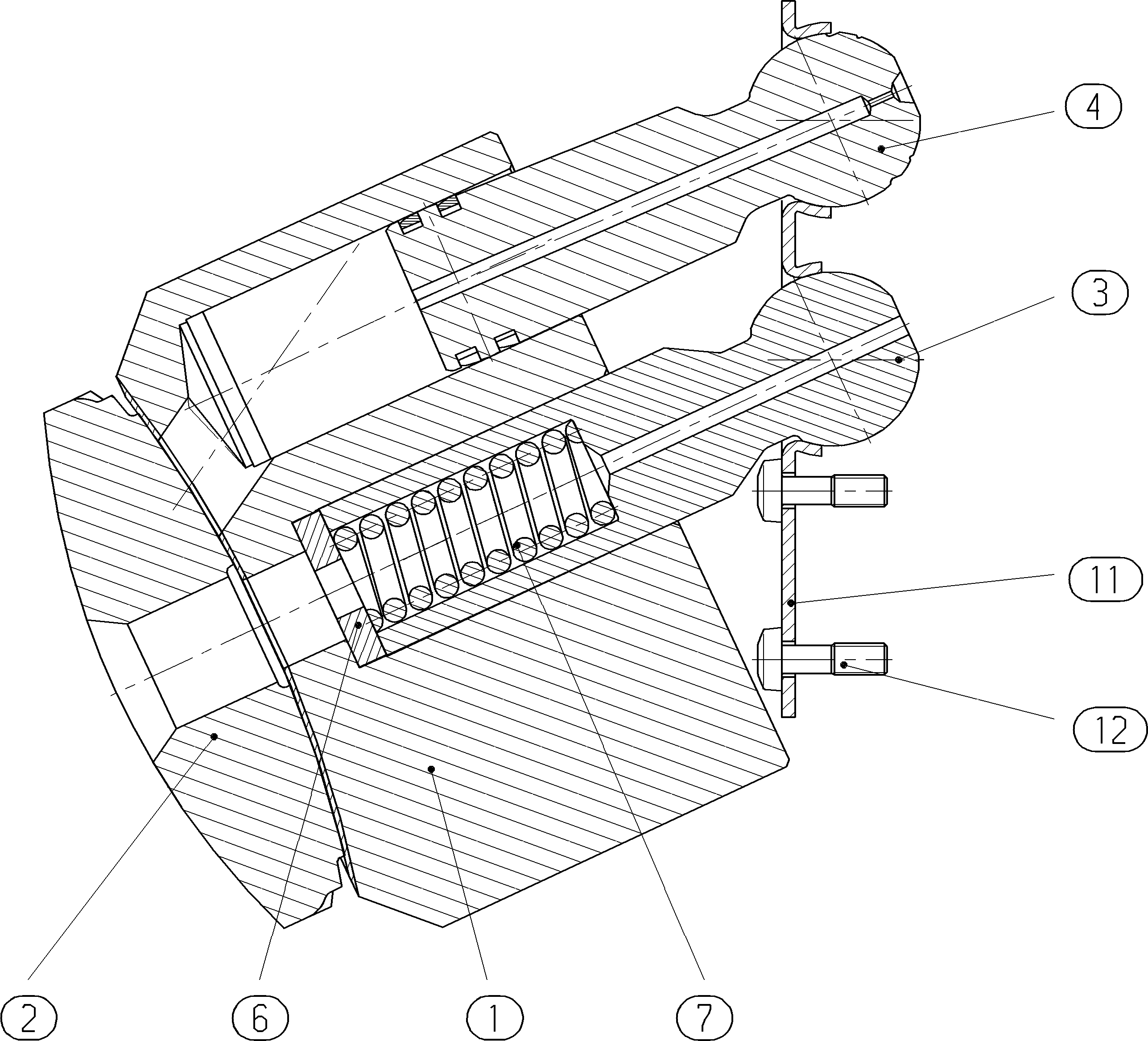

ROTARY GROUPR909603992
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909430072 | CYLINDER | 1 | ||
| R909921791 | CONTROL LENS | 1 | ||
| R902082202 | CENTER PIN | 1 | ||
| R902021906 | PISTON | 7 | ||
| R909921775 | ADJUSTMENT SHIM | 1 | ||
| R909921776 | ADJUSTMENT SHIM | 1 | ||
| R909921777 | ADJUSTMENT SHIM | 1 | ||
| R909921778 | ADJUSTMENT SHIM | 1 | ||
| R909921779 | ADJUSTMENT SHIM | 1 | ||
| R909921780 | ADJUSTMENT SHIM | 1 | ||
| R909921782 | COMPRESSION SPRING | 1 | ||
| R902033027 | RETAINING PLATE | 1 | ||
| R902602395 | PAN-HEAD SCREW | 14 |
