Assembly

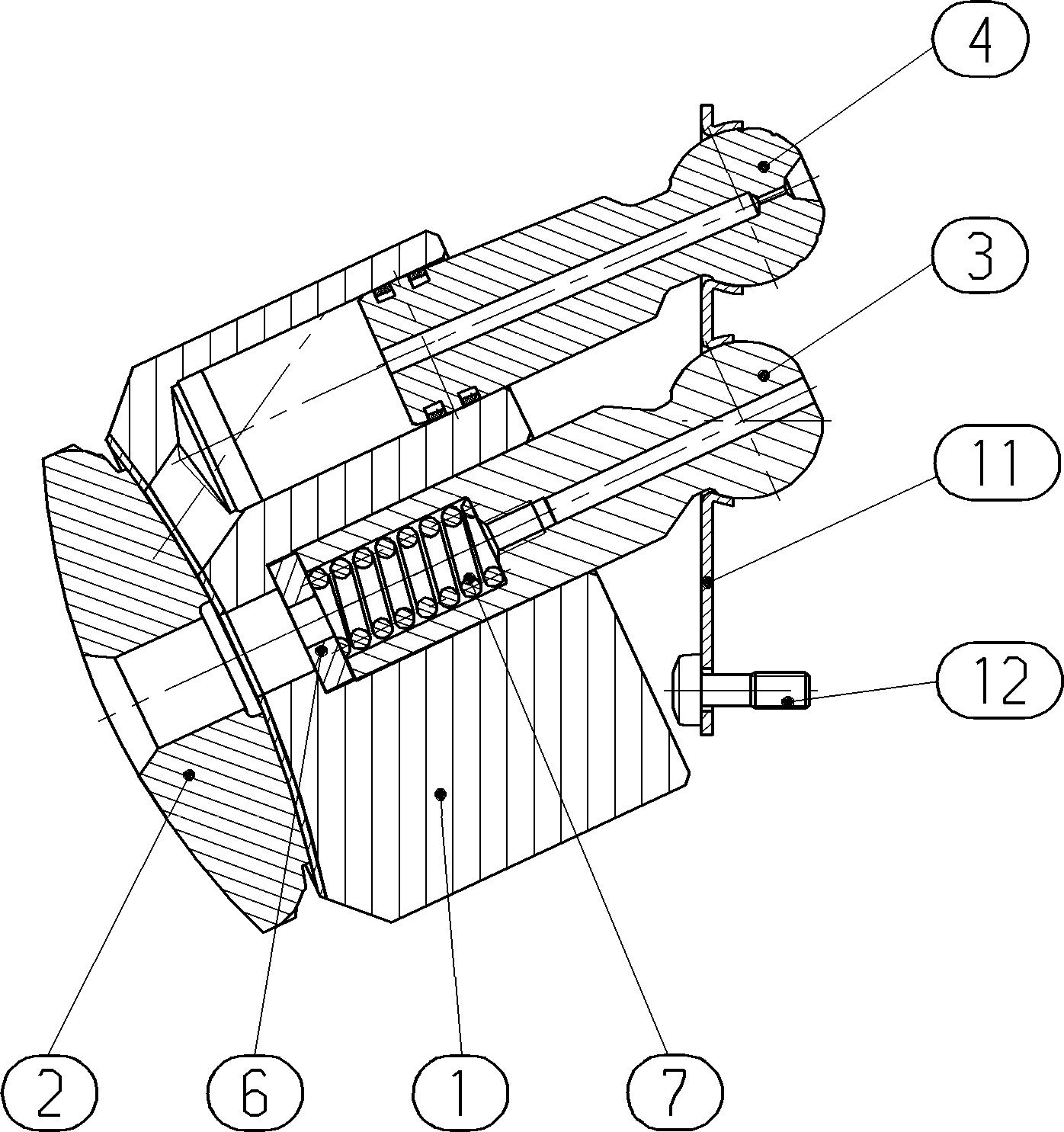

ROTARY GROUPR909603996
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421291 | CYLINDER | 1 | ||
| R909921785 | CONTROL LENS | 1 | ||
| R909921845 | CENTER PIN | 1 | ||
| R902021900 | PISTON | 7 | ||
| R902130609 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921846 | COMPRESSION SPRING | 1 | ||
| R902072550 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 7 |
