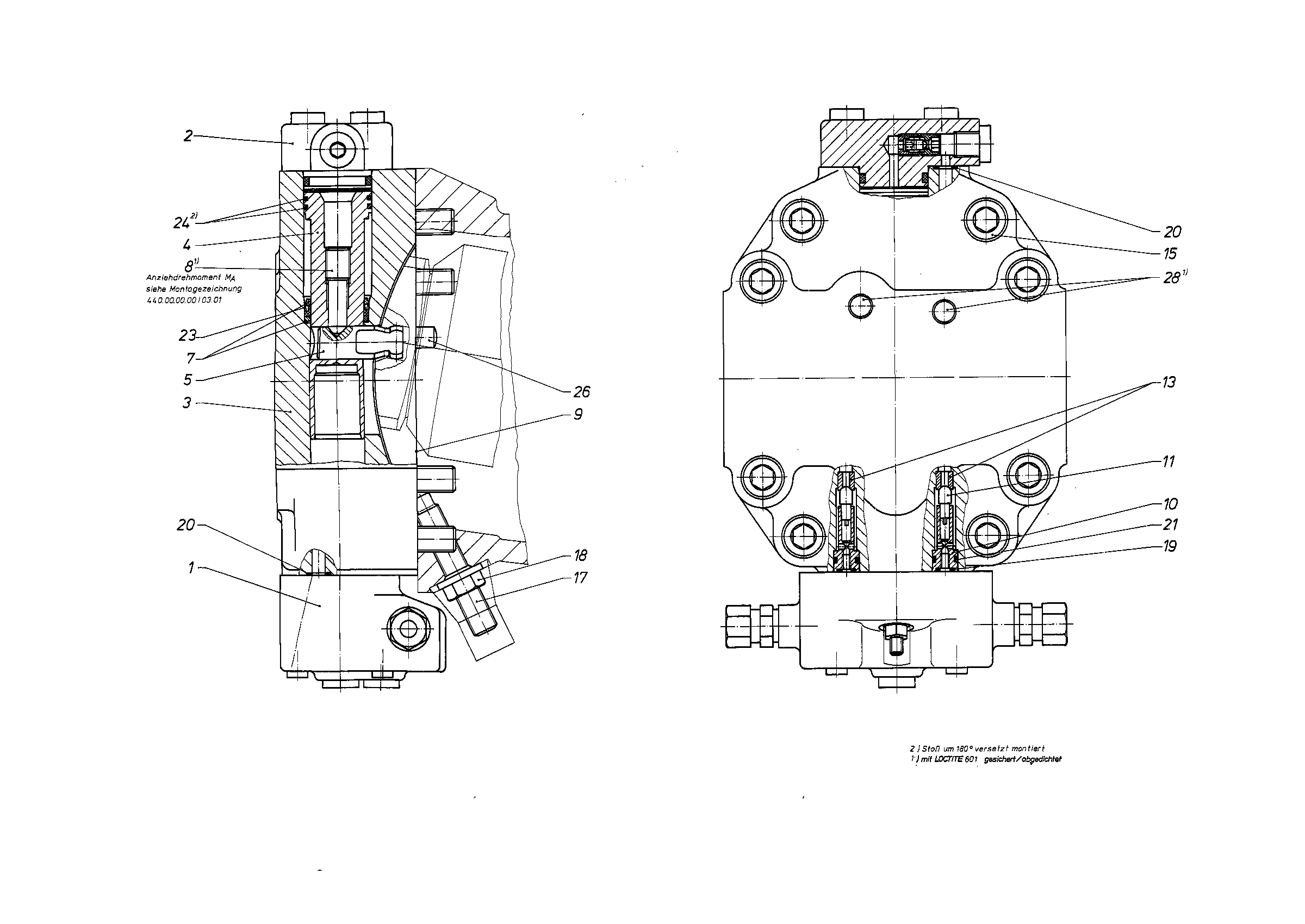

Assembly
CONTROLR909604343
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909604050 | CONTROL PART Assembly parts list →L | 1 | ||
| 2 | R909423178 | COVER Assembly parts list →L | 1 | |
| 3 | R909424084 | COVER PLATE | 1 | |
| R909424089 | POSITIONING PISTON | 1 | ||
| 5 | R909422021 | POSITIONING STUD | 1 | |
| R909424090 | BACKUP RING | 2 | ||
| 8 | R909445922 | SETSCREW | 1 | |
| 9 | R902011856 | SEALD | 1 | |
| R902075344 | VALVE GUIDE | 2 | ||
| 11 | R909426662 | BOLT | 2 | |
| R902209845 | BUSHING | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446862 | SETSCREW Assembly parts list →L | 1 | ||
| 18 | R909152459 | SEALING NUTD | 1 | |
| 19 | R909084469 | O-RINGD | 2 | |
| R909086498 | O-RINGD | 3 | ||
| 21 | R909085709 | O-RINGD | 2 | |
| 22 | R902602322 | BACKUP RING | 2 | |
| R909156542 | ROD SEALD | 1 | ||
| R909156479 | R-RINGD | 2 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
