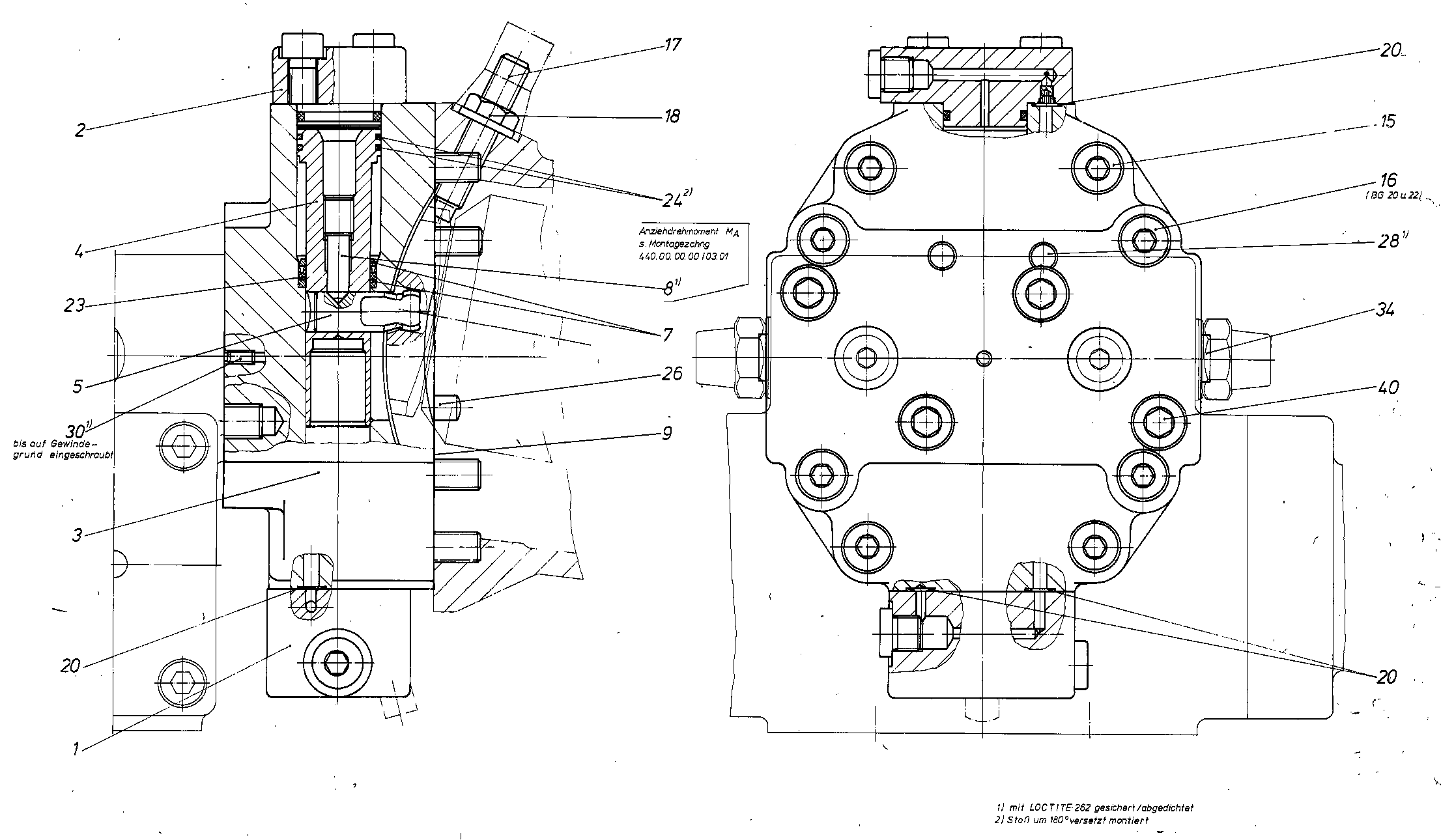

Assembly
CONTROLR909605433
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909447678 | CONTROL PART Assembly parts list →L | 1 | ||
| R909423093 | COVER Assembly parts list →L | 1 | ||
| R909432377 | COVER PLATE | 1 | ||
| R909422948 | POSITIONING PISTON | 1 | ||
| R909422949 | POSITIONING STUD | 1 | ||
| R909422950 | BACKUP RING | 2 | ||
| R909445016 | SETSCREW | 1 | ||
| R902011855 | SEALD | 1 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083103 | SOCKET HEAD CAP SCREW | 4 | ||
| R909446862 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909086498 | O-RINGD | 5 | ||
| R909156540 | ROD SEALD | 1 | ||
| R902602841 | STEEL SEALING RINGD | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909087558 | SETSCREW | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 |
