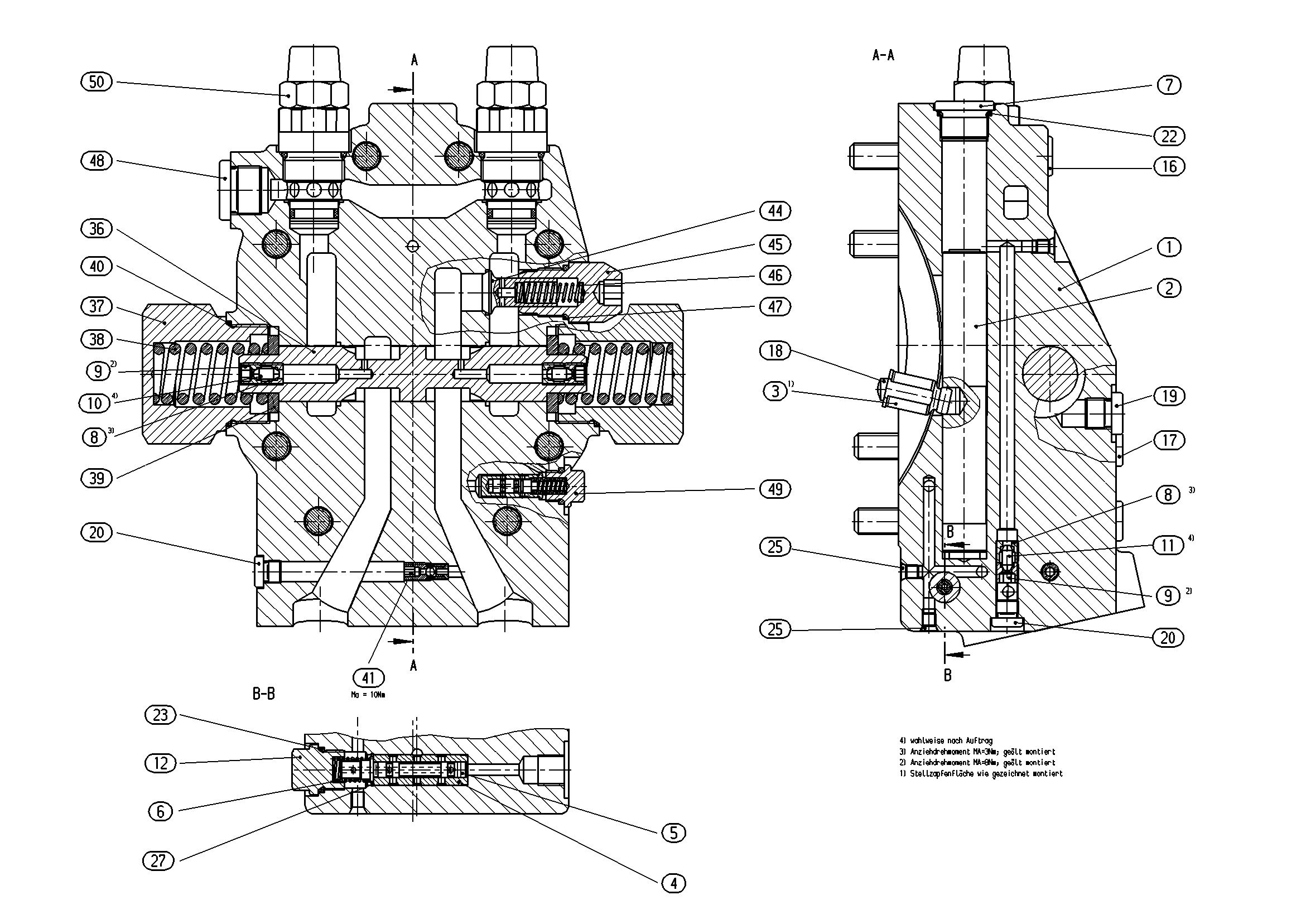

Assembly
CONTROLR909605890
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909650757 | COVER PLATE | 1 | ||
| R909650699 | POSITIONING PISTON | 2 | ||
| R909651060 | POSITIONING STUD | 1 | ||
| R909921975 | CONTROL SLEEVE | 1 | ||
| R909921999 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443868 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 3 | ||
| R909400264 | THROTTLE SCREW | 3 | ||
| R909446625 | THROTTLE PIN Assembly parts list →L | 3 | ||
| R909922002 | SCREW PLUG | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREWD | 4 | ||
| R902156198 | SOCKET HEAD CAP SCREWD | 4 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909153930 | SCREW PLUG | 3 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909152694 | O-RING | 1 | ||
| R909087891 | O-RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909156500 | SNAP RING | 1 | ||
| R909651061 | BRAKE PISTON | 1 | ||
| R909651062 | SCREW PLUG | 2 | ||
| R909651063 | COMPRESSION SPRING | 2 | ||
| R902077337 | WASHER | 2 | ||
| R909831924 | O-RING | 2 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909651064 | VALVE CONE | 2 | ||
| R909651049 | SCREW PLUGD | 2 | ||
| R909651065 | COMPRESSION SPRINGD | 2 | ||
| R909154235 | O-RING | 2 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R902118838 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902603808 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 |
