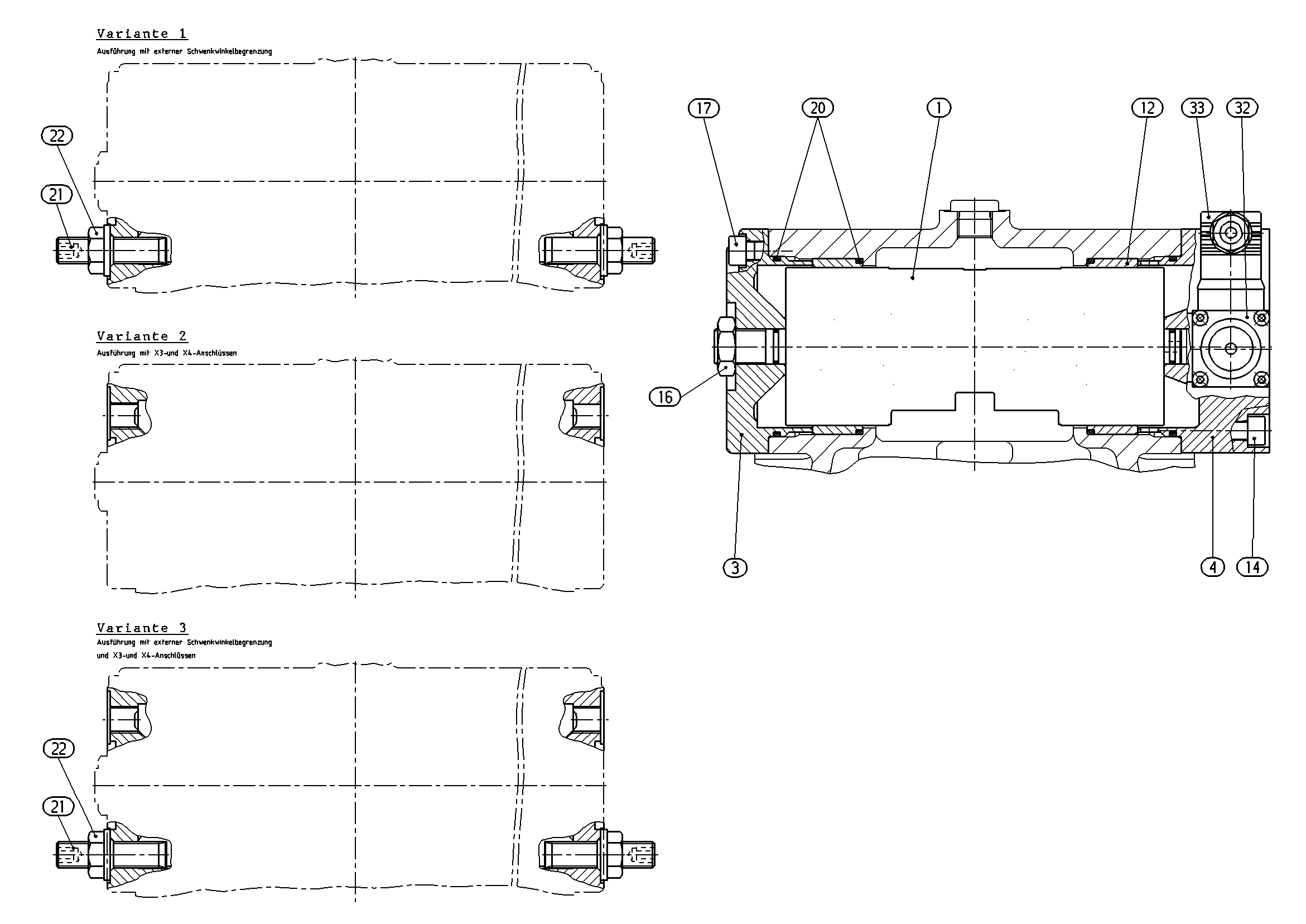

Assembly
CONTROLR909606477
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025502 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R909922110 | COVER | 1 | ||
| R909650094 | COVER | 1 | ||
| R909436419 | BUSHING | 2 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157477 | HEXAGON NUT | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083790 | O-RINGD | 4 | ||
| R902602745 | DUMMY | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| 98 | R902002373 | SEAL KIT | 1 |
