Assembly

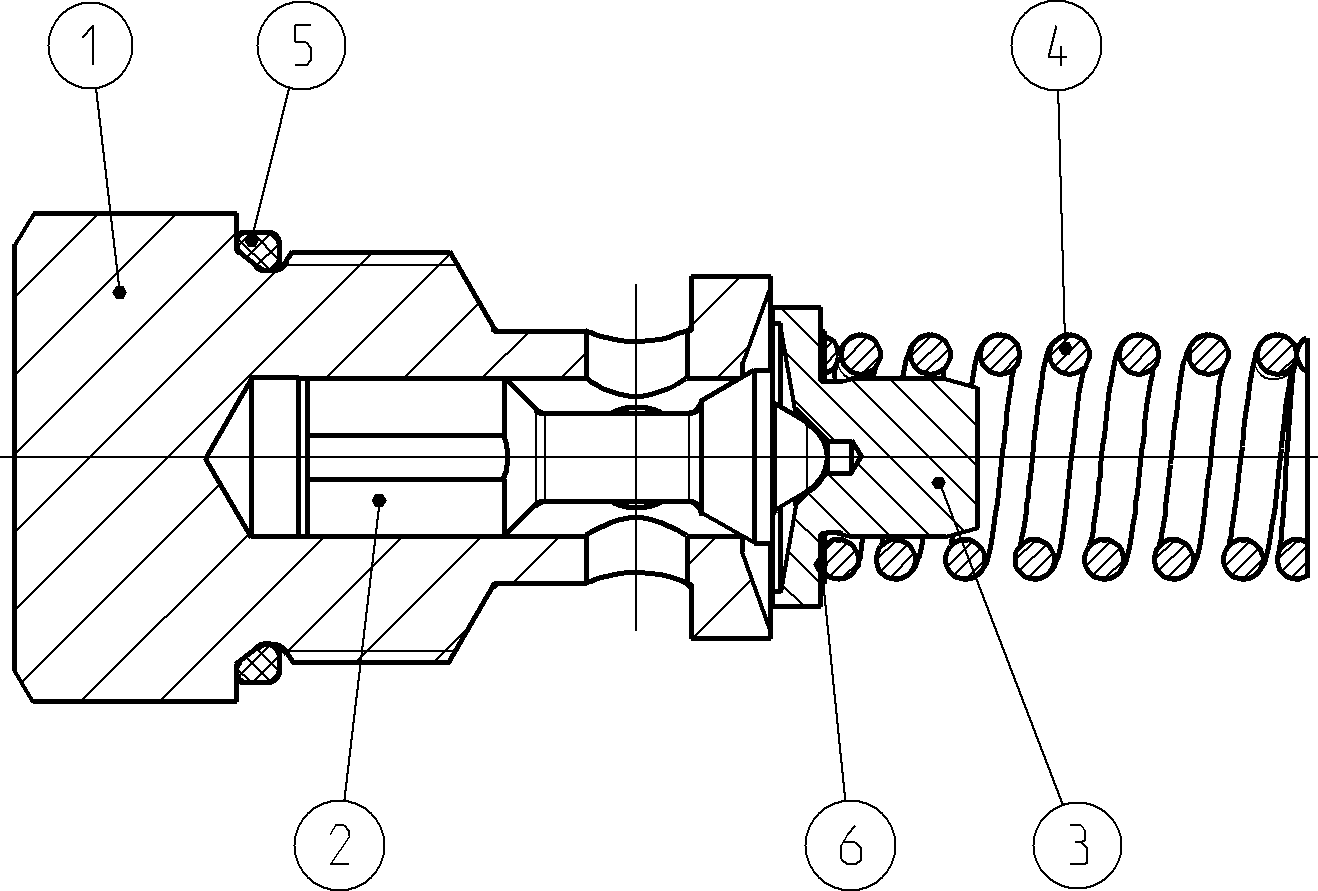

PRESSURE RELIEF VALVER909606779
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909650261 | SCREW PLUG | 1 | |
| 2 | R909435899 | VALVE SPOOL | 1 | |
| 3 | R902010336 | SPRING DISK | 1 | |
| 4 | R909440765 | COMPRESSION SPRING | 1 | |
| 5 | R909083761 | O-RINGD | 1 | |
| 6 | R909150369 | SHIM RING | 1 | |
| 6 | R909150370 | SHIM RING | 1 | |
| 6 | R909153402 | SHIM RING | 1 |
