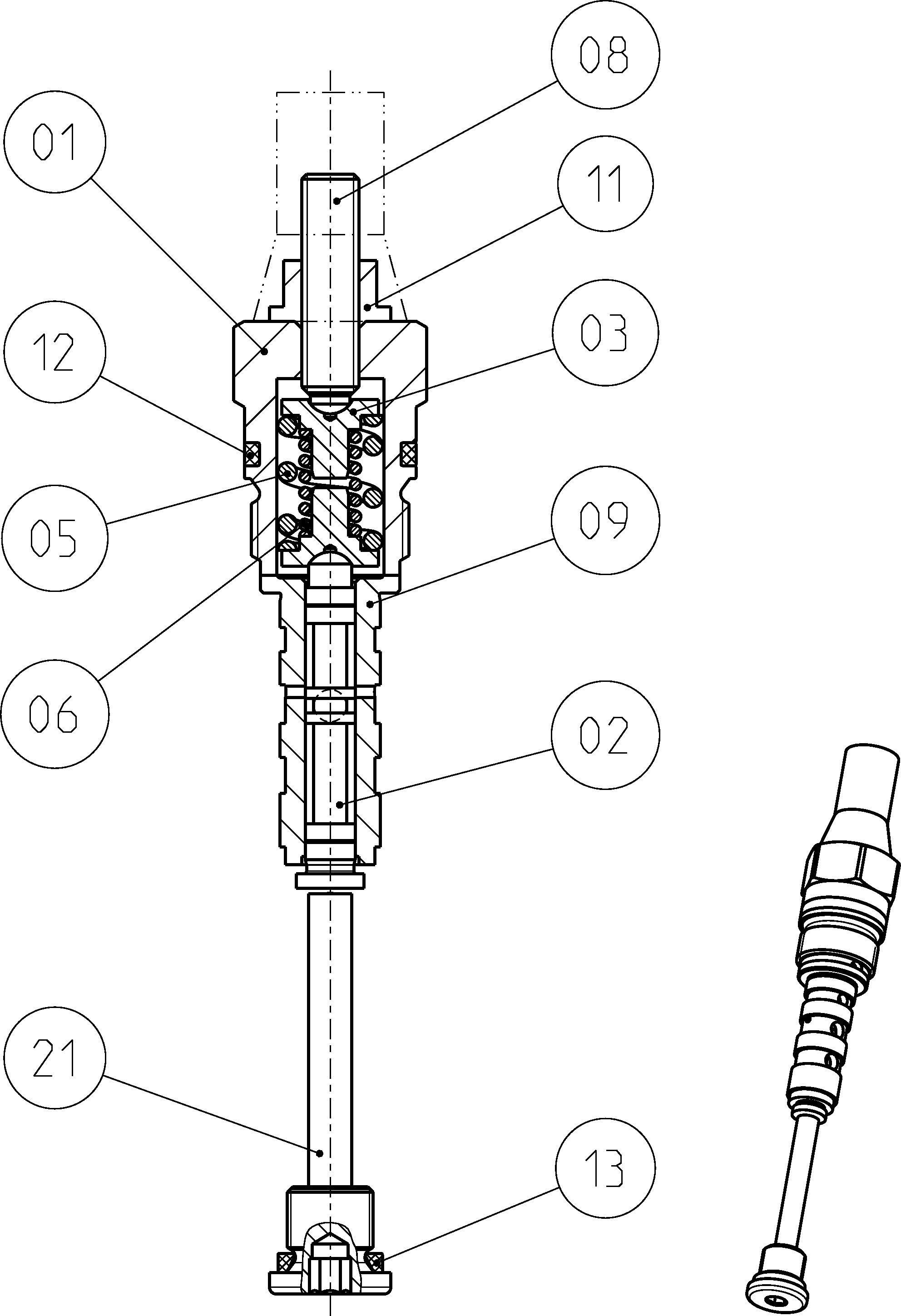

Assembly
CONTROL ELEMENTR909606784
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902033700 | SCREW PLUG | 1 | |
| 2 | R909449719 | CONTROL PISTON | 1 | |
| 3 | R909436839 | SPRING BOLT | 2 | |
| 5 | R909436394 | COMPRESSION SPRING | 1 | |
| 6 | R909436395 | COMPRESSION SPRING | 1 | |
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R902004934 | CONTROL SLEEVE | 1 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083749 | O-RINGD | 1 | ||
| R902029166 | SCREW PLUG | 1 | ||
| 98 | R902221227 | SEAL KIT | 1 |
