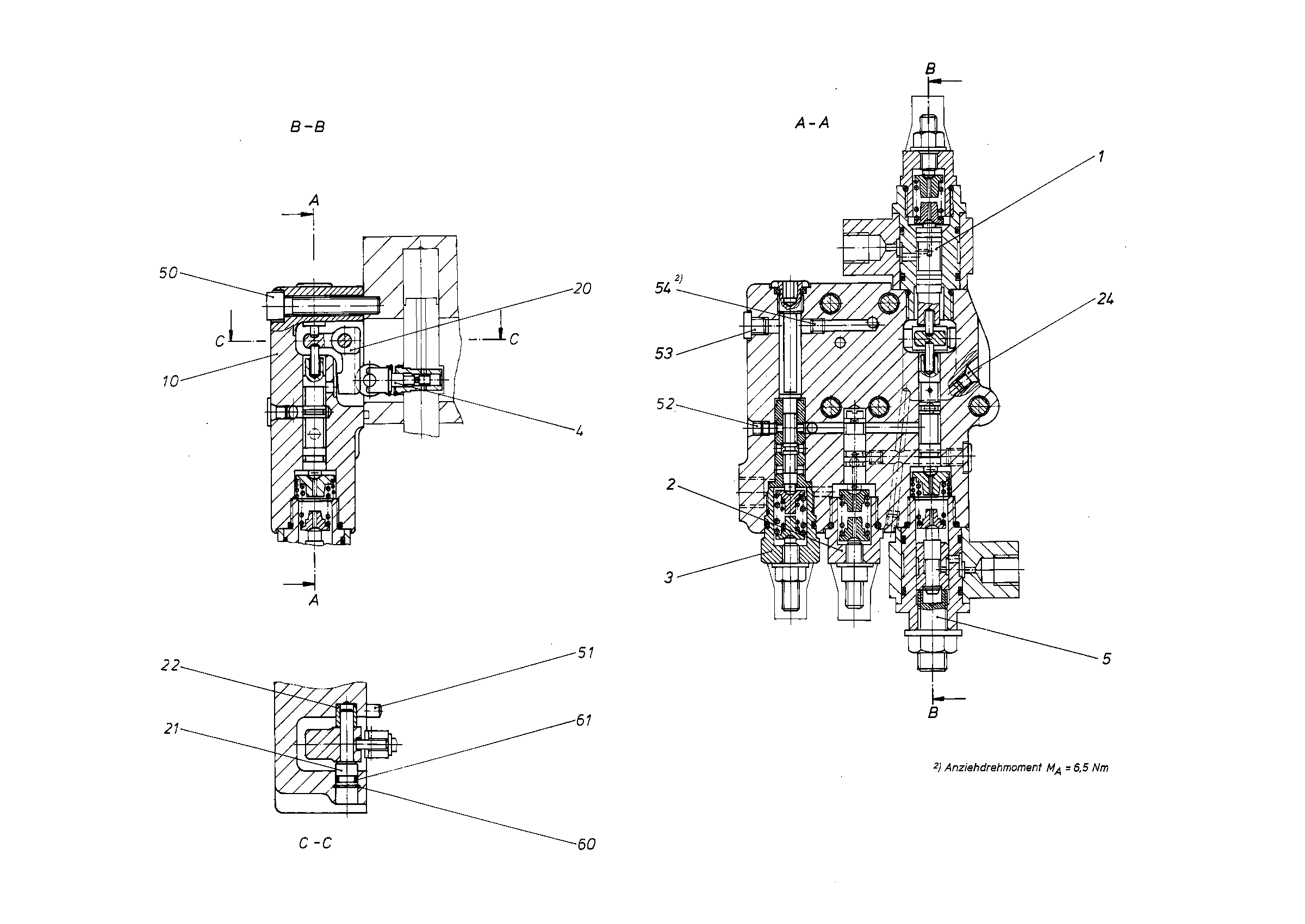

Assembly
REGULATORR909606856
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902229774 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 2 | R909606774 | UNLOADING VALVE Assembly parts list →L | 1 | |
| 3 | R909606784 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R909650901 | MEASURING PISTON Assembly parts list →L | 1 | ||
| 5 | R902026753 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 10 | R909650354 | CONTROL HOUSING | 1 | |
| 20 | R902122300 | ANGLE LEVER | 1 | |
| 21 | R909440788 | BEARING BOLT | 1 | |
| R909431286 | BUSHING | 1 | ||
| R909445306 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156490 | NOZZLE | 2 | ||
| R909087248 | RETAINING RING | 1 | ||
| 61 | R909083724 | O-RING | 1 | |
| 98 | R902002475 | SEAL KIT | 1 |
