Assembly

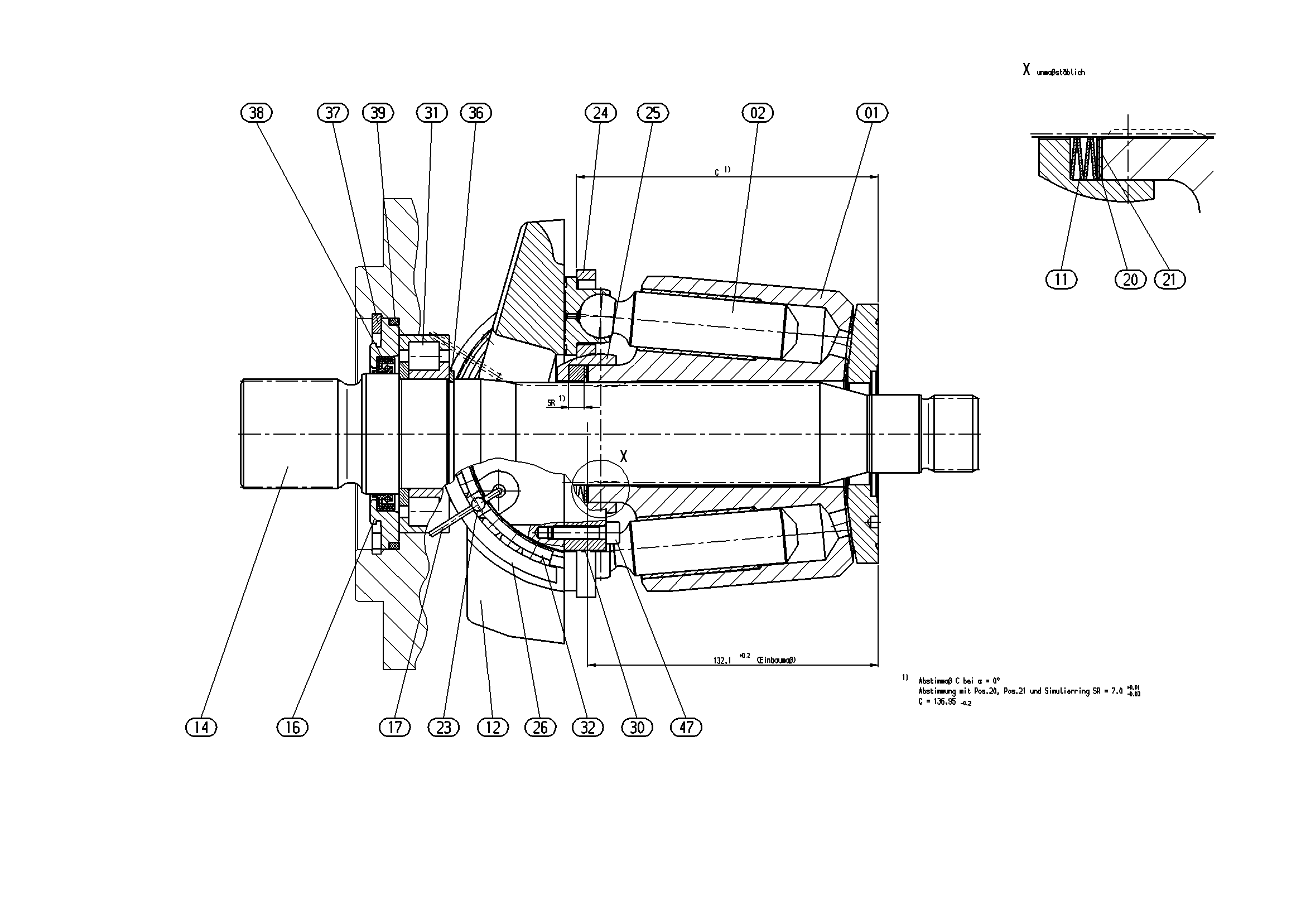

ROTARY GROUPR909606958
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909443978 | CYLINDER Assembly parts list →L | 1 | ||
| 2 | R909078189 | PISTON PAD | 9 | |
| 11 | R909074128 | CUP-SPRING STACK | 1 | |
| 12 | R902213209 | CRADLE | 1 | |
| R909921396 | DRIVE SHAFT | 1 | ||
| R902034801 | LOCKING RINGD | 1 | ||
| R909417959 | WIRE | 4 | ||
| R909078319 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R909412707 | SHIM RING | 1 | ||
| R909413043 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 4 | ||
| R902210083 | RETAINING PLATE | 1 | ||
| R909426460 | RETAINING BALL | 1 | ||
| R902066599 | BEARING SHELL PAIR | 1 | ||
| R909431891 | RETAINING SEGMENT | 2 | ||
| R902603914 | CYL. ROLLER BEARING | 1 | ||
| R909830836 | CAGE PAIR | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R909154528 | RETAINING RING | 1 | ||
| R909153352 | SHAFT SEALING RINGD | 1 | ||
| R909086949 | O-RINGD | 1 | ||
| 47 | R909831330 | SOCKET HEAD CAP SCREW | 4 |
