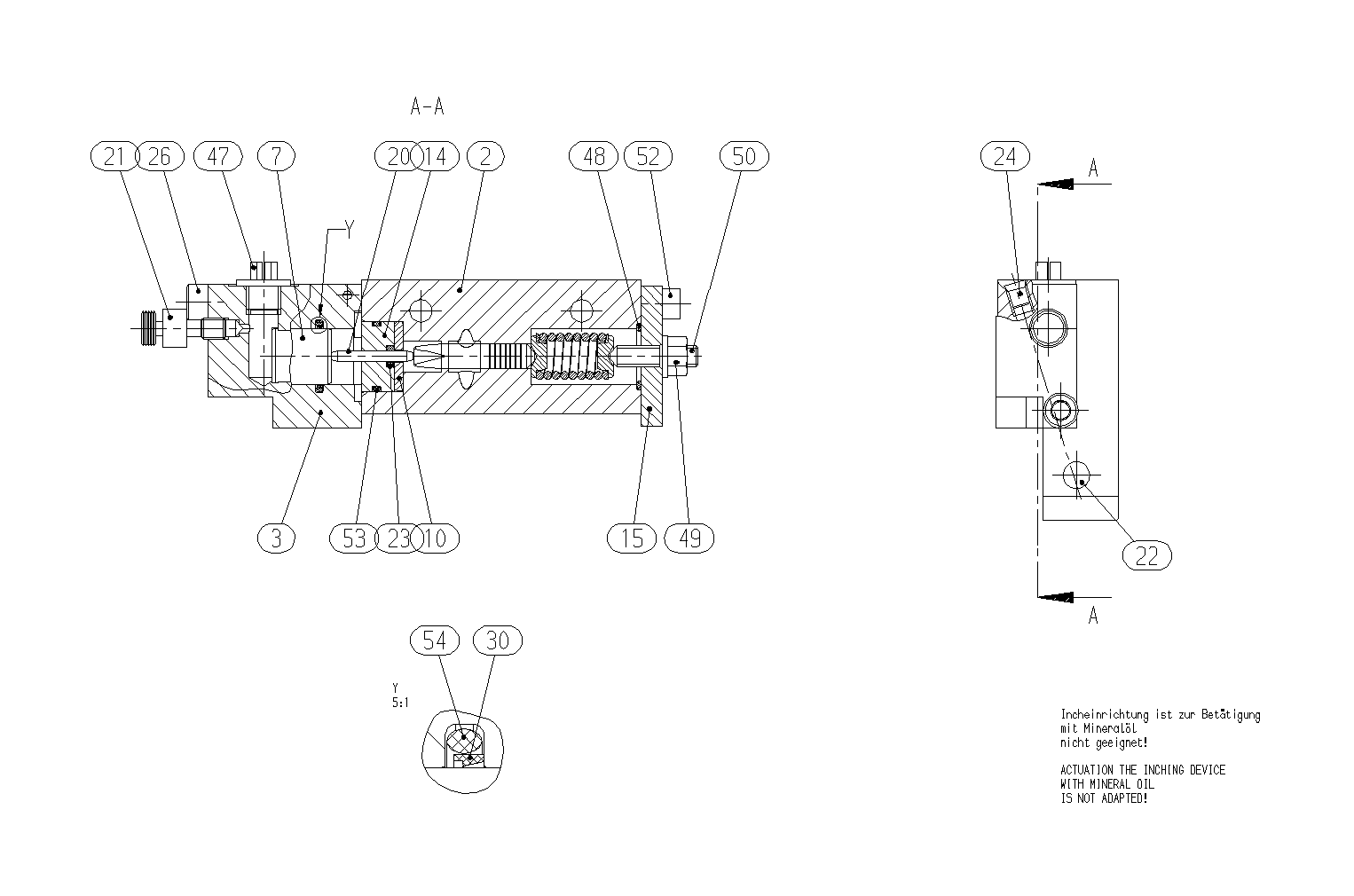

Assembly
INCHING DEVICER909606978
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902139480 | INCHING HOUSING | 1 | ||
| R902042796 | HOUSING COVER | 1 | ||
| R909401708 | PISTON | 1 | ||
| R909404505 | WASHER | 1 | ||
| R909445037 | SEAL BUSHING | 1 | ||
| R909404507 | COVER | 1 | ||
| R909922151 | STRAIGHT PIN | 1 | ||
| R909153893 | BLEEDER VALVE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 2 | ||
| R909153892 | ROD SEALD | 1 | ||
| R902602203 | SEAL SCREW | 1 | ||
| R909086478 | O-RINGD | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909153284 | SETSCREW | 1 | ||
| R909083009 | SOCKET HEAD CAP SCREW | 2 | ||
| R909084939 | O-RINGD | 1 | ||
| R909153894 | O-RING | 1 |
