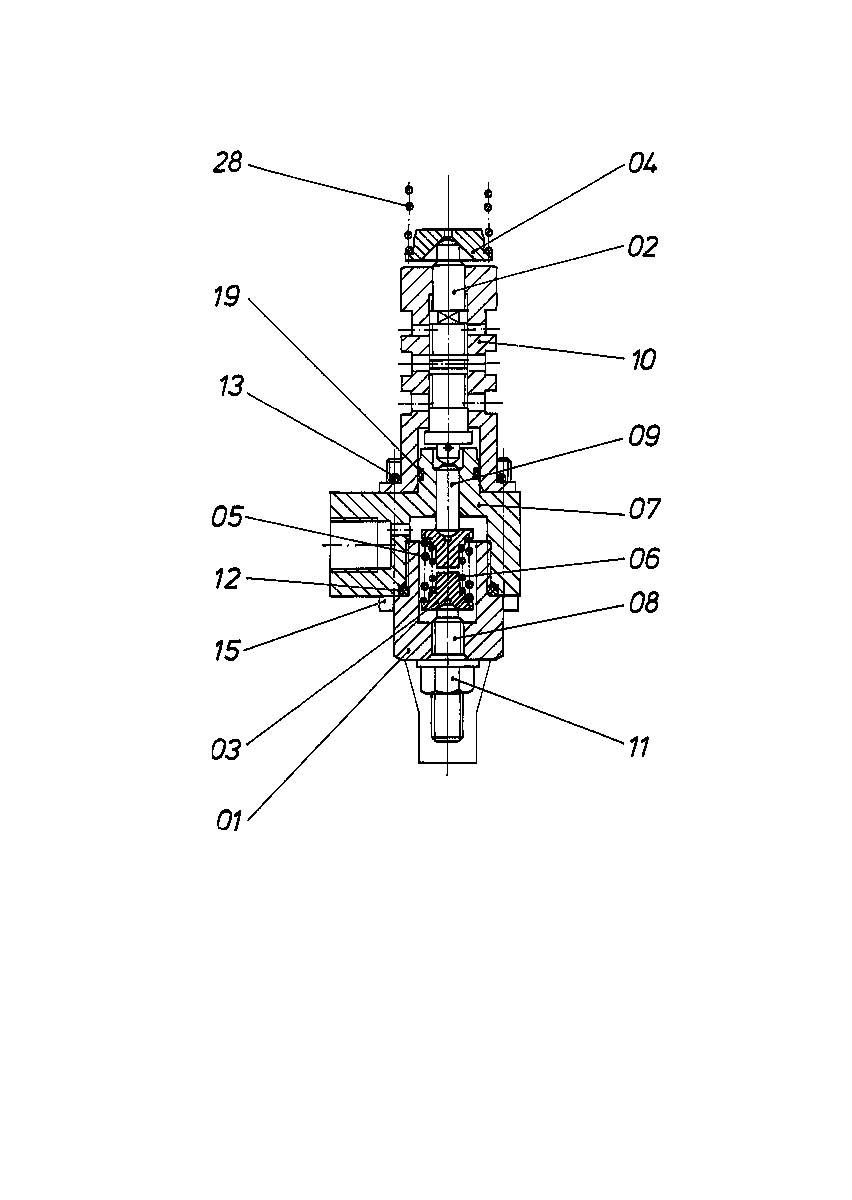

Assembly
CONTROL ELEMENTR909607241
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909440779 | SCREW PLUG | 1 | |
| 2 | R909650475 | CONTROL PISTON | 1 | |
| 3 | R909436839 | SPRING BOLT | 2 | |
| 4 | R909650478 | SPRING DISK | 1 | |
| 5 | R902219952 | COMPRESSION SPRING | 1 | |
| 6 | R909436395 | COMPRESSION SPRING | 1 | |
| 7 | R909650476 | CONNECTING PIECE | 1 | |
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R909650477 | PISTON | 1 | |
| R909650474 | CONTROL SLEEVE | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| R909083758 | O-RINGD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909083007 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086333 | O-RINGD | 1 | ||
| 28 | R909449783 | COMPRESSION SPRING | 1 |
