Assembly

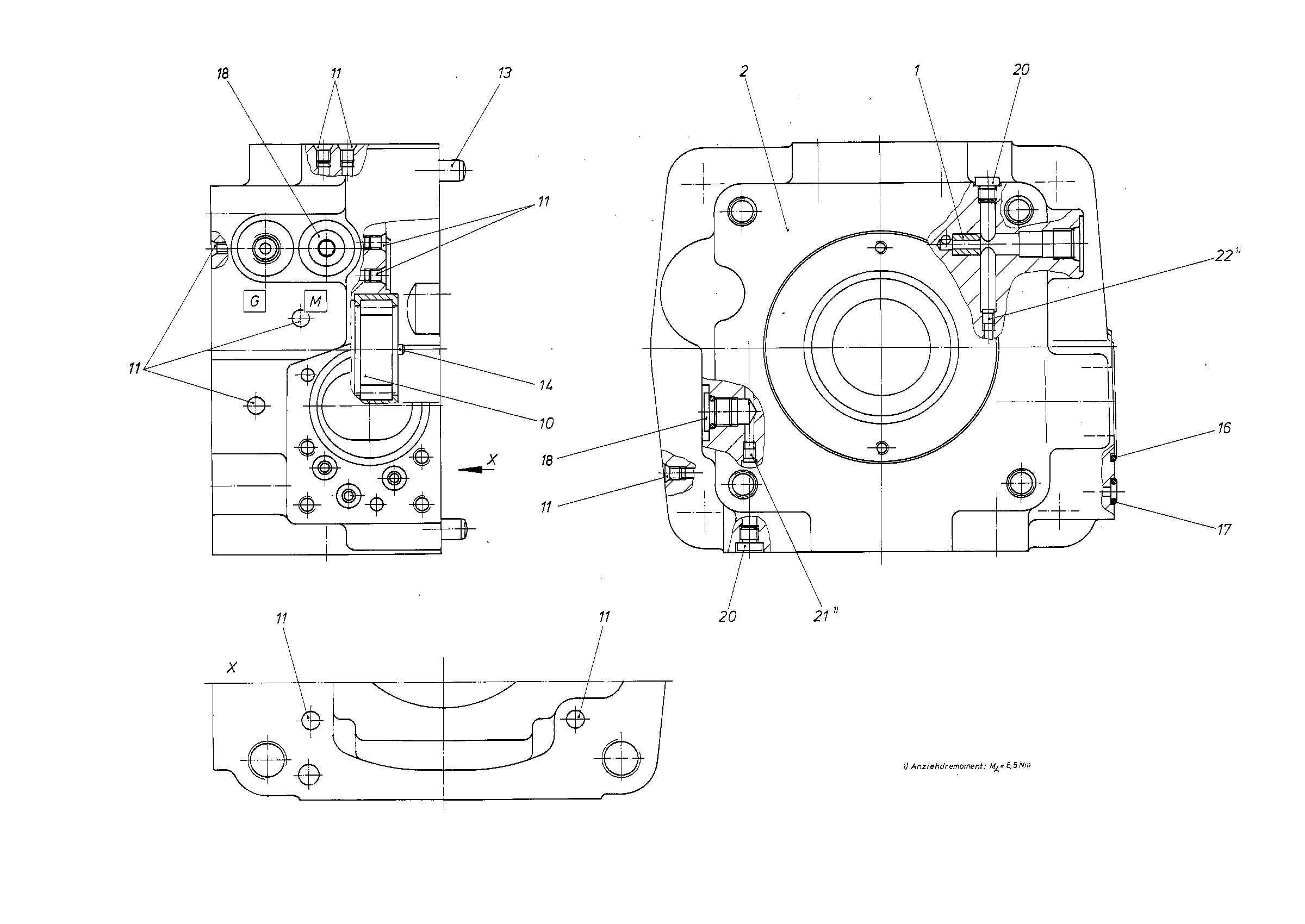

CONNECTION PLATE, RLR909607412
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R909921834 | CONNECTION PLATE, RL | 1 | |
| 10 | R909156668 | CYL. ROLLER BEARING | 1 | |
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 5 | |
| 13 | R913009671 | STRAIGHT PIN | 2 | |
| 14 | R909087755 | STRAIGHT PIN | 1 | |
| 16 | R909152464 | O-RINGD | 1 | |
| 17 | R902602890 | R-RINGD | 3 | |
| 19 | R909153371 | SCREW PLUGD | 2 | |
| 20 | R909154024 | SCREW PLUGD | 1 | |
| 21 | R909156495 | NOZZLE | 1 | |
| 22 | R909156494 | NOZZLE | 1 | |
| 98 | R902002466 | SEAL KIT | 1 |
