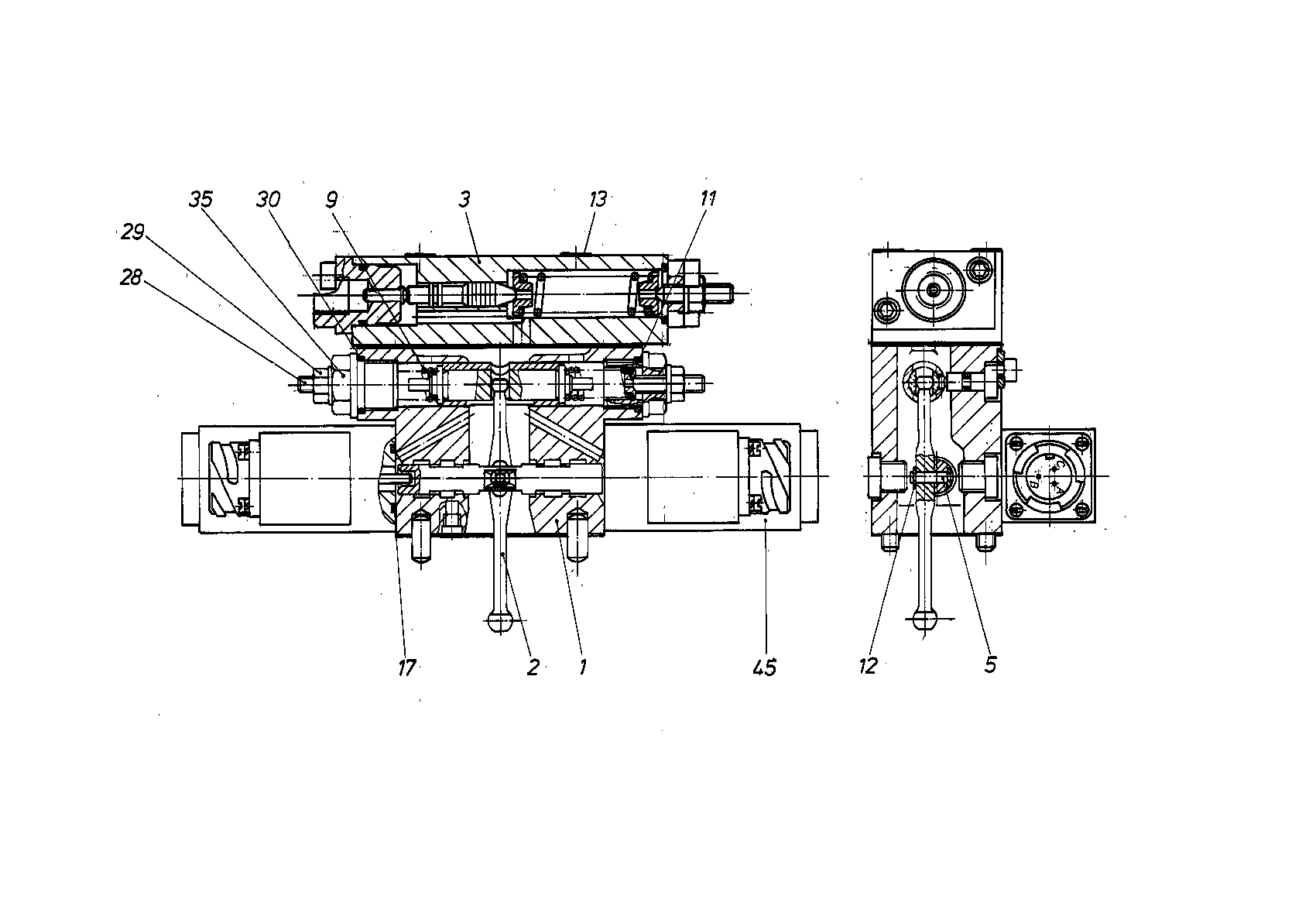

Assembly
CONTROL MODULER909607531
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909416220 | CONTROL MODULE Assembly parts list →L | 1 | |
| R909650098 | FEEDBACK LEVER | 1 | ||
| 3 | R909420953 | UNLOADING VALVE Assembly parts list →L | 1 | |
| 5 | R909415995 | BOLT | 1 | |
| 9 | R909416168 | COMPRESSION SPRING | 2 | |
| 11 | R909416052 | SPRING DISK | 2 | |
| R909156804 | LOCKING WASHER | 2 | ||
| R909156829 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083737 | O-RINGD | 2 | ||
| 28 | R909153284 | SETSCREW | 2 | |
| R909152425 | SEALING NUTD | 2 | ||
| R909083753 | O-RINGD | 2 | ||
| 35 | R909416067 | SCREW PLUG | 2 | |
| R909428276 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 |
