Assembly

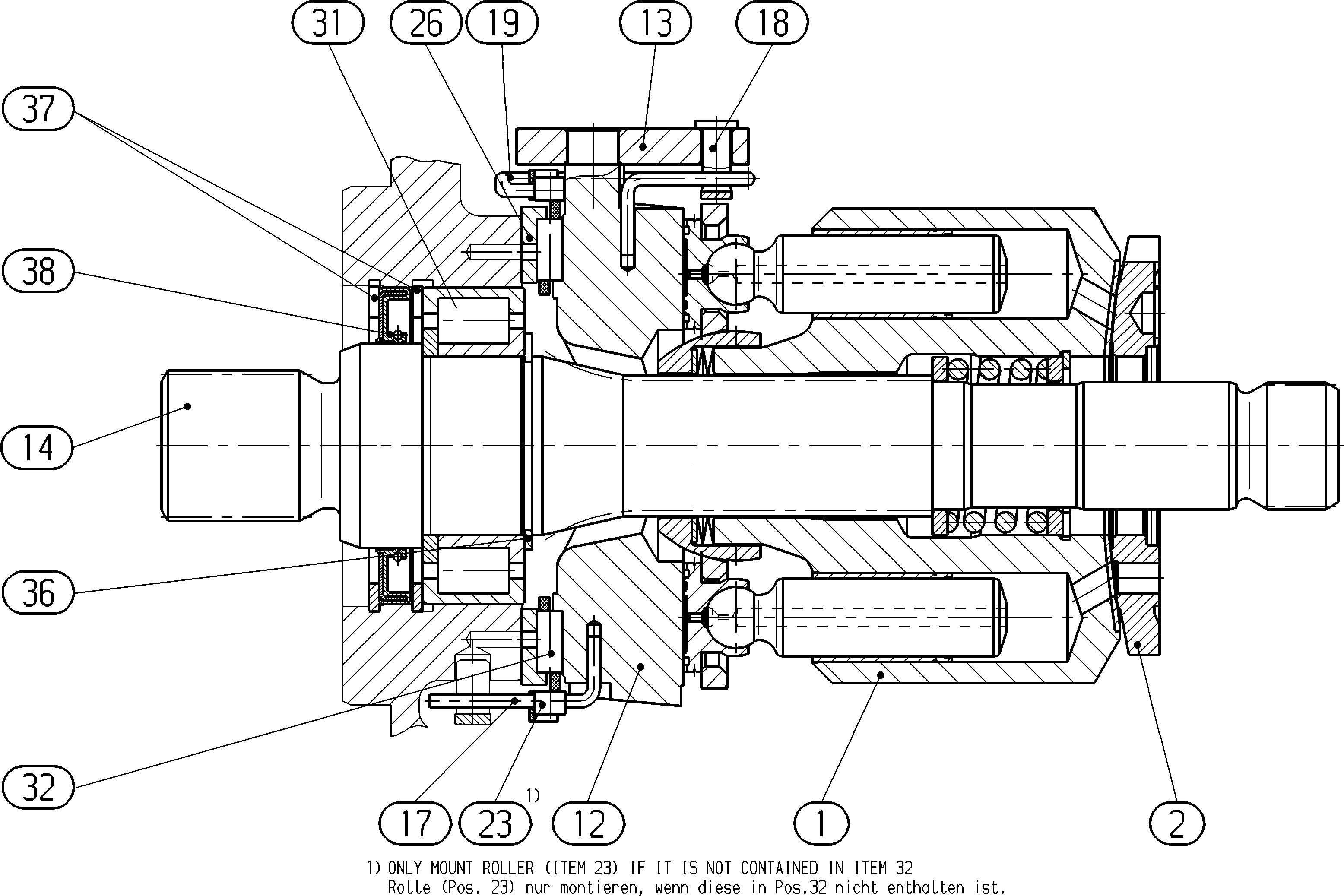

ROTARY GROUPR909607687
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902079297 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902273787 | CONTROL PLATE, RIGHT-HAND ROTATION | 1 | ||
| R909435775 | CRADLE | 1 | ||
| R909444490 | SLIDER | 1 | ||
| R909449754 | DRIVE SHAFT | 1 | ||
| R909408786 | WIRE | 1 | ||
| R909443447 | PIVOT PIN | 1 | ||
| R902136754 | WIRE | 1 | ||
| R902066234 | BEARING SHELL PAIR | 1 | ||
| R909153685 | CYL. ROLLER BEARING | 1 | ||
| R902603726 | CAGE PAIR | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| R909832149 | RETAINING RING Assembly parts list →L | 2 | ||
| R902601819 | ROTARY SHAFT LIP SEALD | 1 | ||
| 98 | R902002387 | SEAL KITD | 1 |
