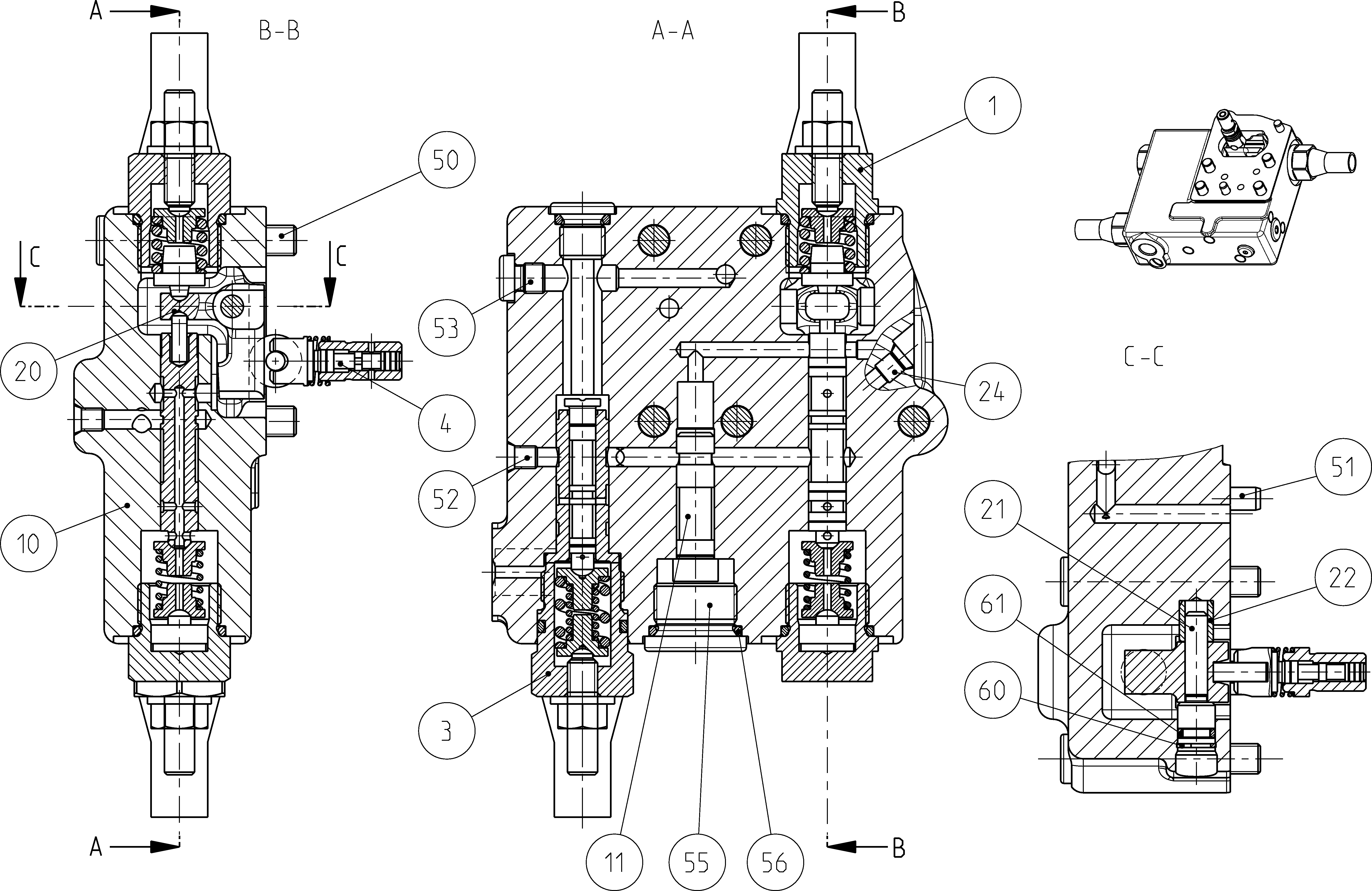

Assembly
REGULATORR909607742
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442806 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909609562 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902012650 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R909651435 | CONTROL HOUSING | 1 | ||
| R909445250 | LOCKING BOLT | 1 | ||
| R902122301 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909445306 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083043 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909154024 | SCREW PLUG | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002462 | SEAL KITD | 1 |
