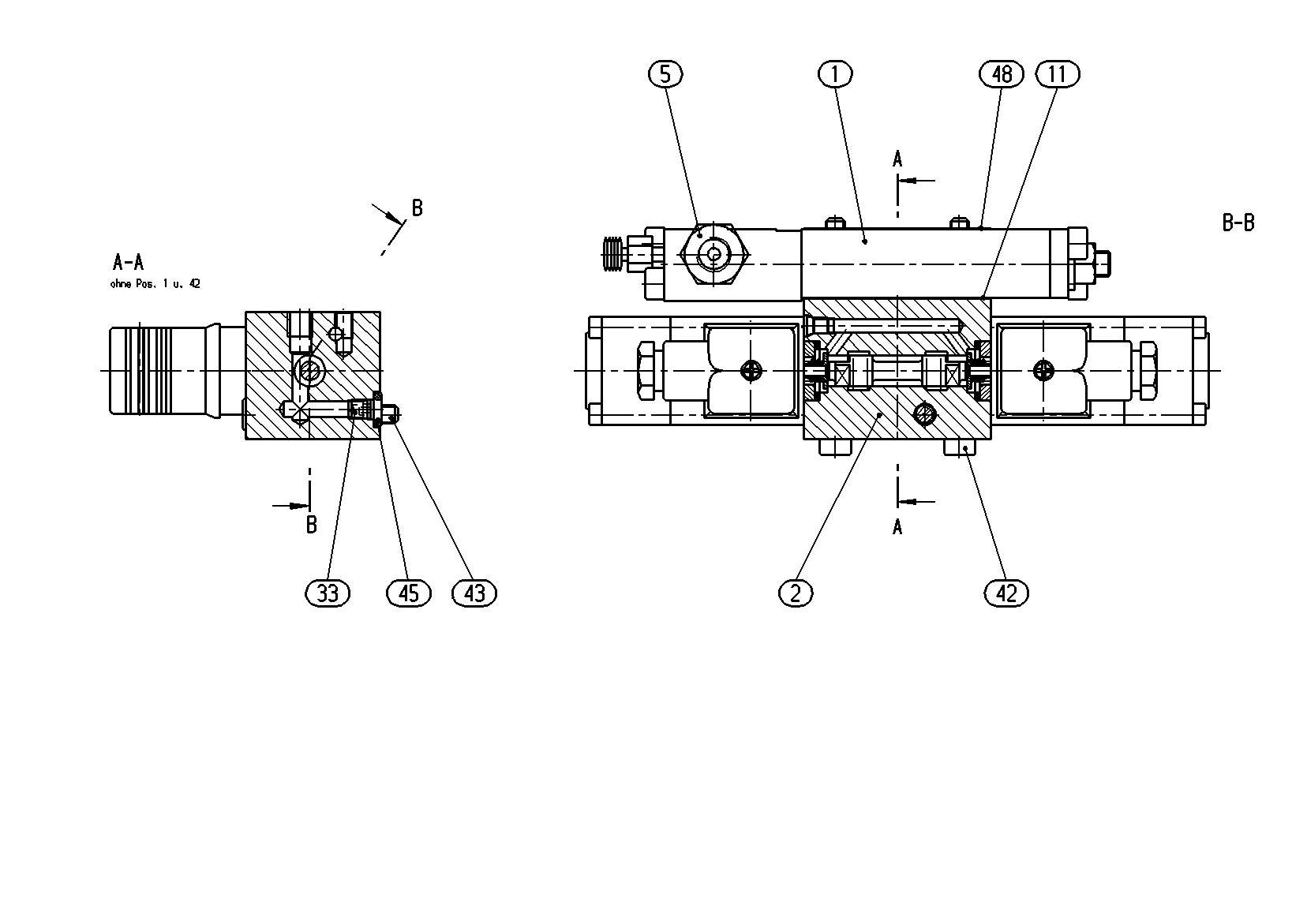

Assembly
INCHING VALVER909607978
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909412049 | INCHING DEVICE Assembly parts list →L | 1 | ||
| R909434267 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| 5 | R902080490 | THREADED REDUCING STUD | 1 | |
| 11 | R902027736 | SEALD | 1 | |
| R909156492 | NOZZLE | 1 | ||
| R902037966 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R909157512 | O-RINGD | 1 | ||
| R902603829 | SEALD | 1 |
