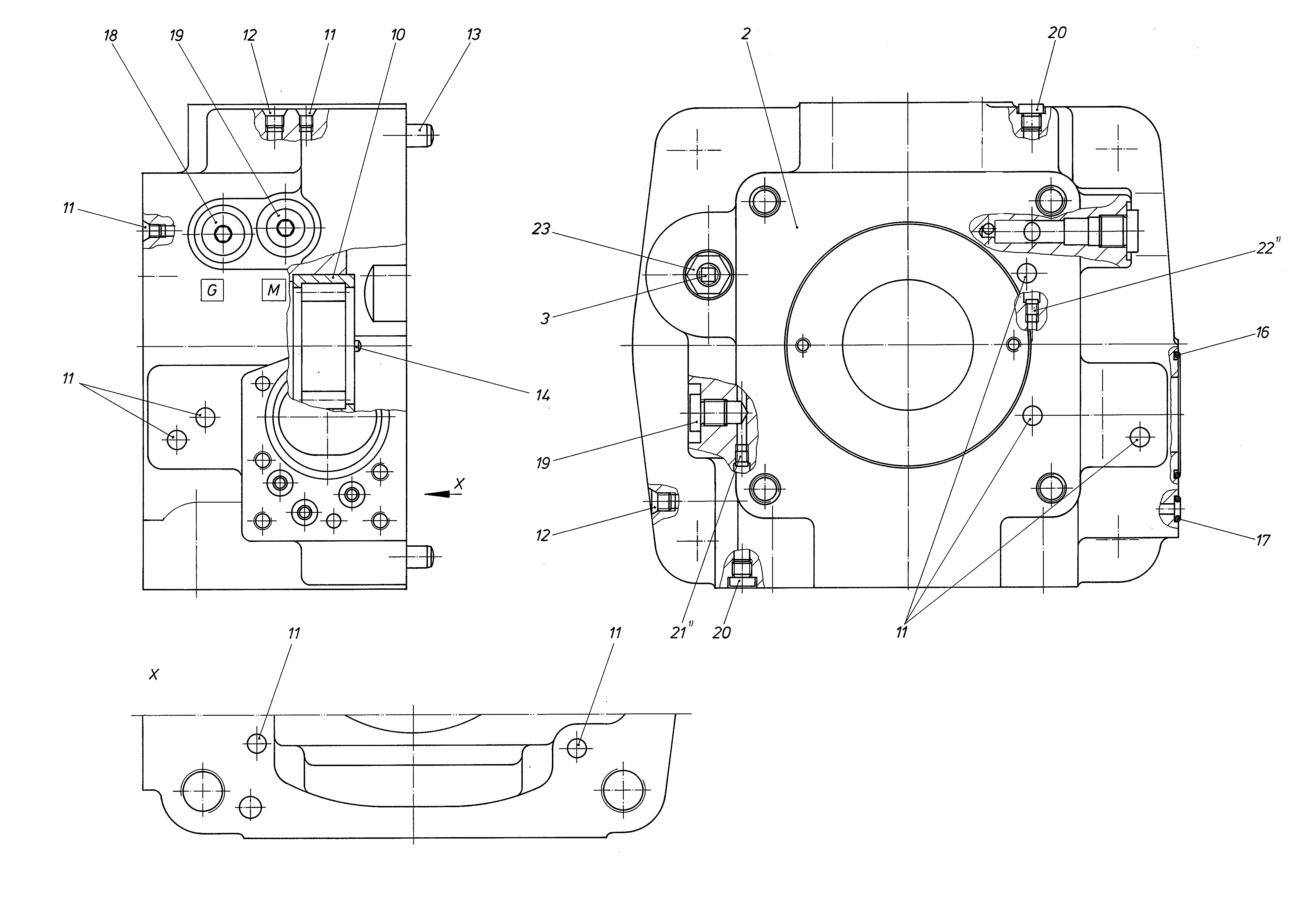

Assembly
CONNECTION PLATER909608063
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R909650872 | CONNECTION PLATE, RL | 1 | |
| R909830781 | CYL. ROLLER BEARING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913009671 | STRAIGHT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R902600659 | O-RINGD | 1 | ||
| R902603231 | R-RINGD | 3 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909156650 | SCREW PLUGD | 2 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| 21 | R909156495 | NOZZLE | 1 | |
| R909156494 | NOZZLE | 1 |
