Assembly

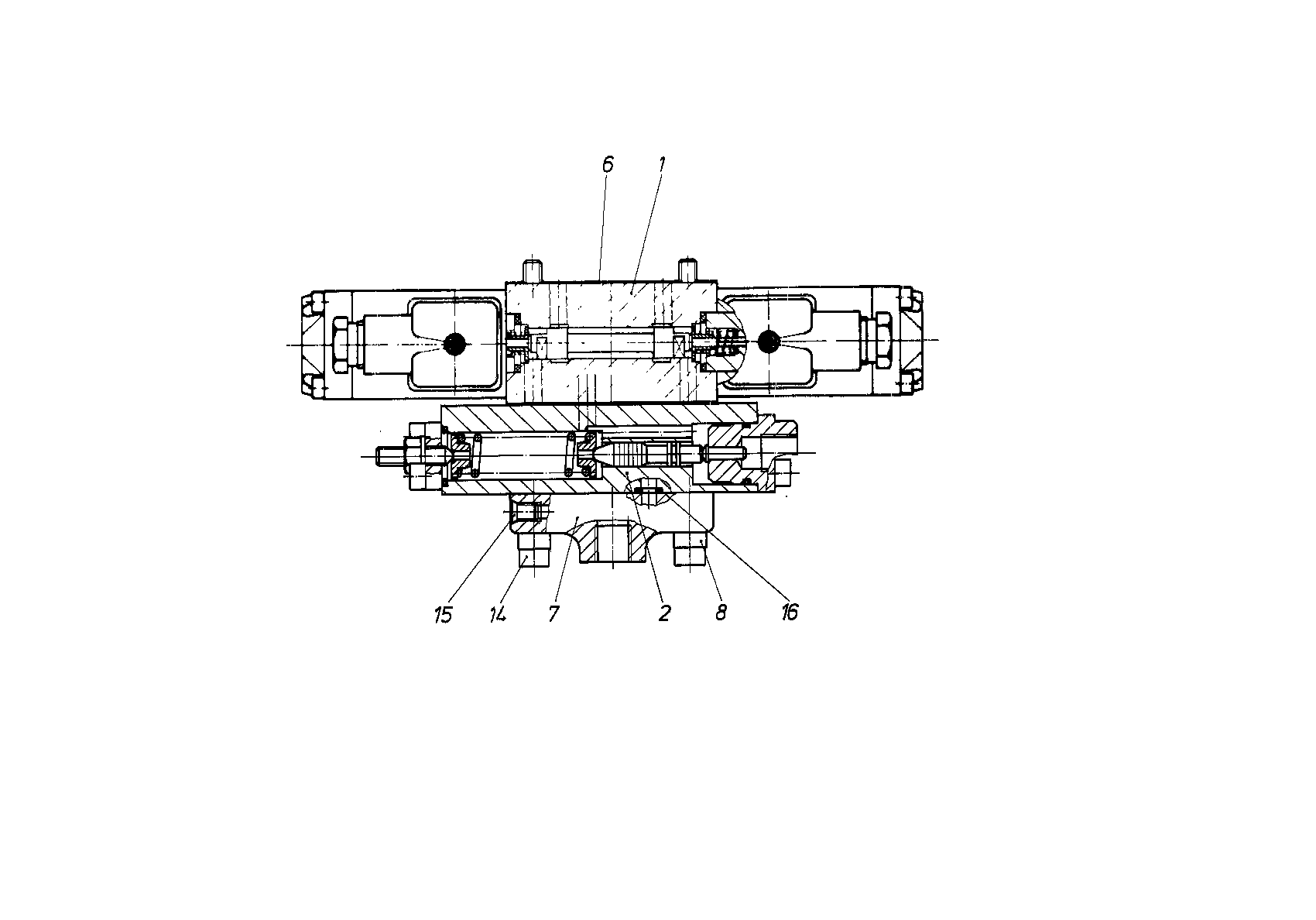

DIRECTIONAL-CONTROL VALVER909608885
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909434045 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| 2 | R909608886 | UNLOADING VALVE Assembly parts list →L | 1 | |
| R913049009 | SEALD | 2 | ||
| 7 | R909651397 | COVER | 1 | |
| R909086080 | SOCKET HEAD CAP SCREW | 4 | ||
| 15 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 16 | R909086380 | O-RINGD | 2 |
