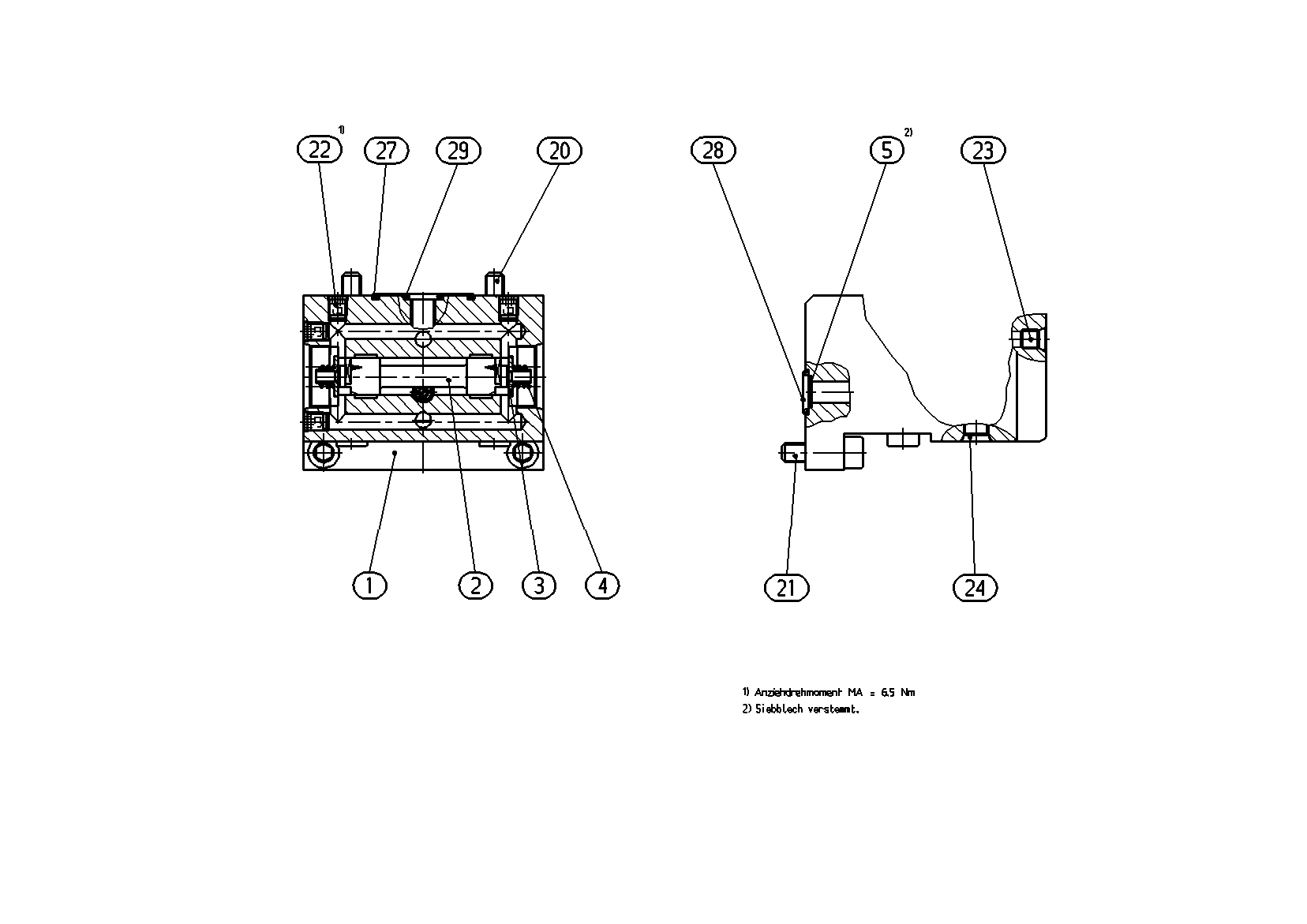

Assembly
VALVE HOUSINGR909609139
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902139475 | VALVE HOUSING | 1 | ||
| R909650683 | CONTROL PISTON | 1 | ||
| R902236432 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909007089 | SIEVE PLATE | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600705 | PLUG | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 1 |
