Assembly

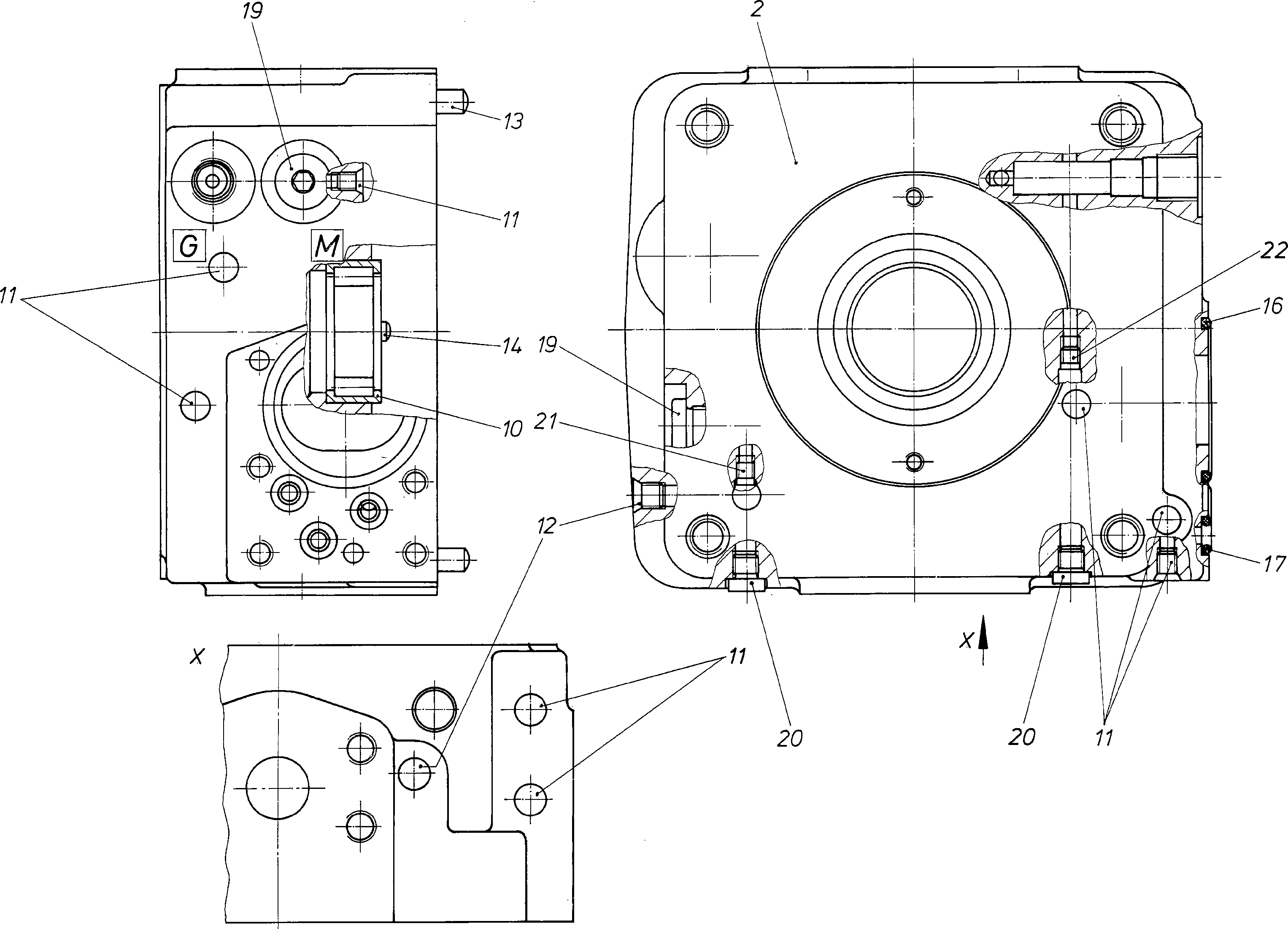

CONNECTION PLATE, LLR909609281
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909651486 | CONNECTION PLATE, LL | 1 | ||
| R909156249 | CYL. ROLLER BEARING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909084213 | STRAIGHT PIN | 2 | ||
| R909087755 | STRAIGHT PIN | 1 | ||
| R909086336 | O-RINGD | 1 | ||
| R902602890 | R-RINGD | 3 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| 98 | R902002464 | SEAL KIT | 1 |
