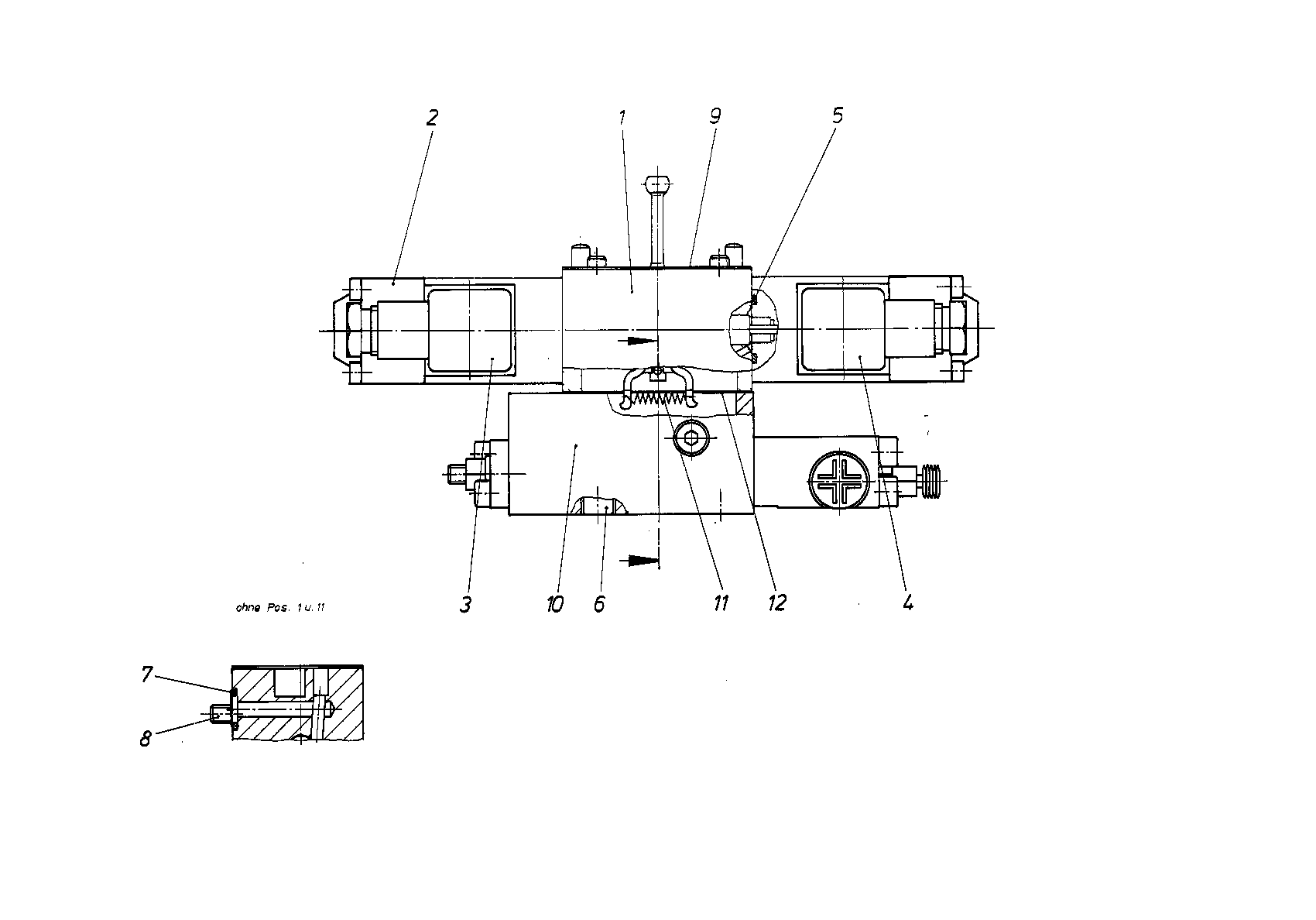

Assembly
CONTROL MODULER909609285
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909428136 | CONTROL MODULE Assembly parts list →L | 1 | |
| 2 | R909441692 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | |
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909083737 | O-RINGD | 2 | ||
| 6 | R909085701 | SOCKET HEAD CAP SCREW | 2 | |
| 7 | R902600655 | O-RINGD | 1 | |
| 8 | R909083028 | SOCKET HEAD CAP SCREW | 1 | |
| 9 | R902603829 | SEALD | 1 | |
| 10 | R902002749 | INCHING DEVICE Assembly parts list →L | 1 | |
| 11 | R909435908 | EXTENSION SPRING | 1 | |
| R902603830 | SEALD | 1 | ||
| 13 | R909085831 | SOCKET HEAD CAP SCREW | 2 | |
| 98 | R902002395 | SEAL KIT | 1 |
