Assembly

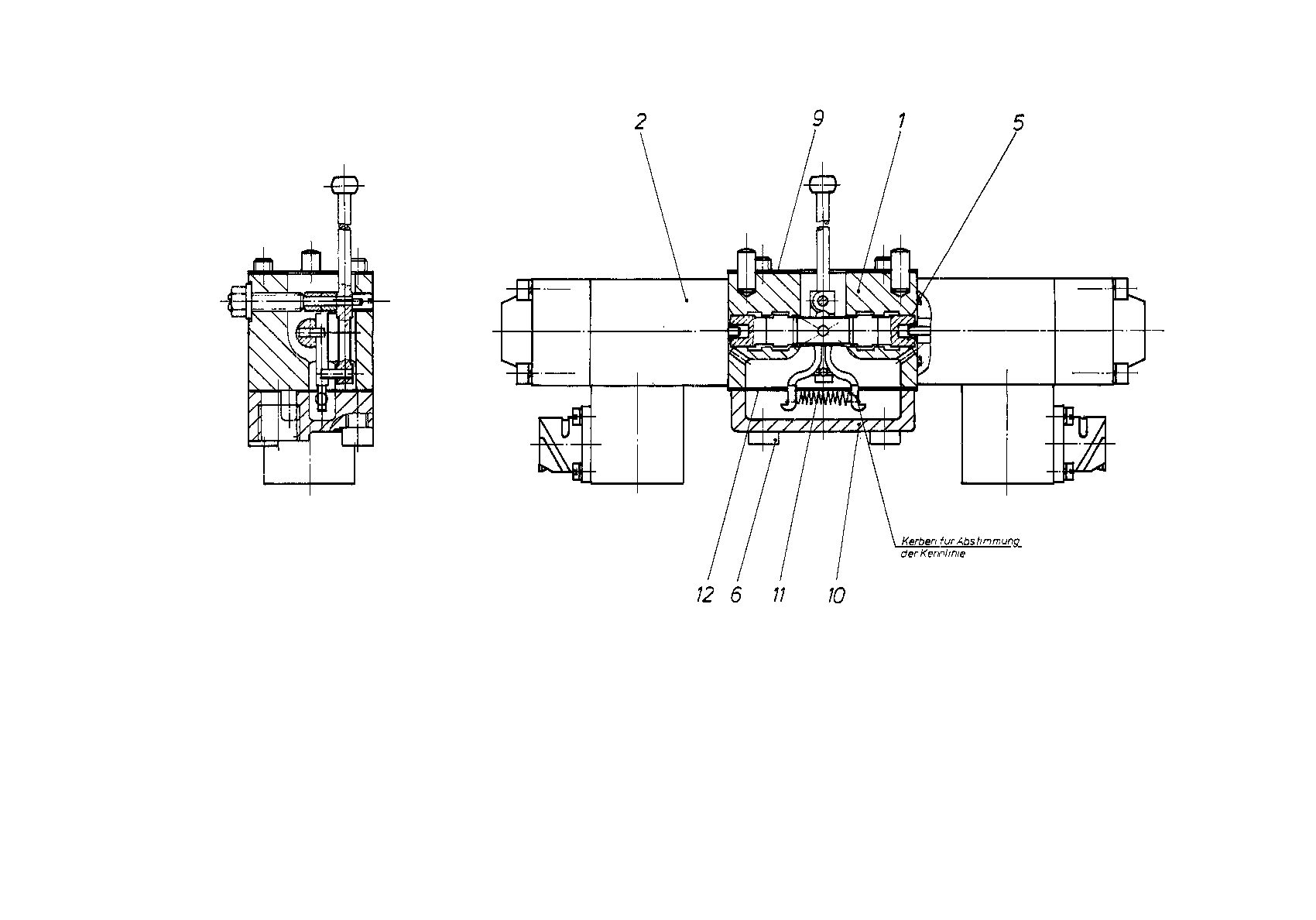

CONTROL MODULER909609309
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909404606 | CONTROL HOUSING Assembly parts list →L | 1 | ||
| 2 | R909428323 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | |
| 5 | R909083737 | O-RINGD | 2 | |
| 6 | R909083029 | SOCKET HEAD CAP SCREW | 4 | |
| R902603829 | SEALD | 1 | ||
| R909071512 | CONNECTION COVER | 1 | ||
| 11 | R909435908 | EXTENSION SPRING | 1 | |
| 12 | R902603830 | SEALD | 1 |
