Assembly

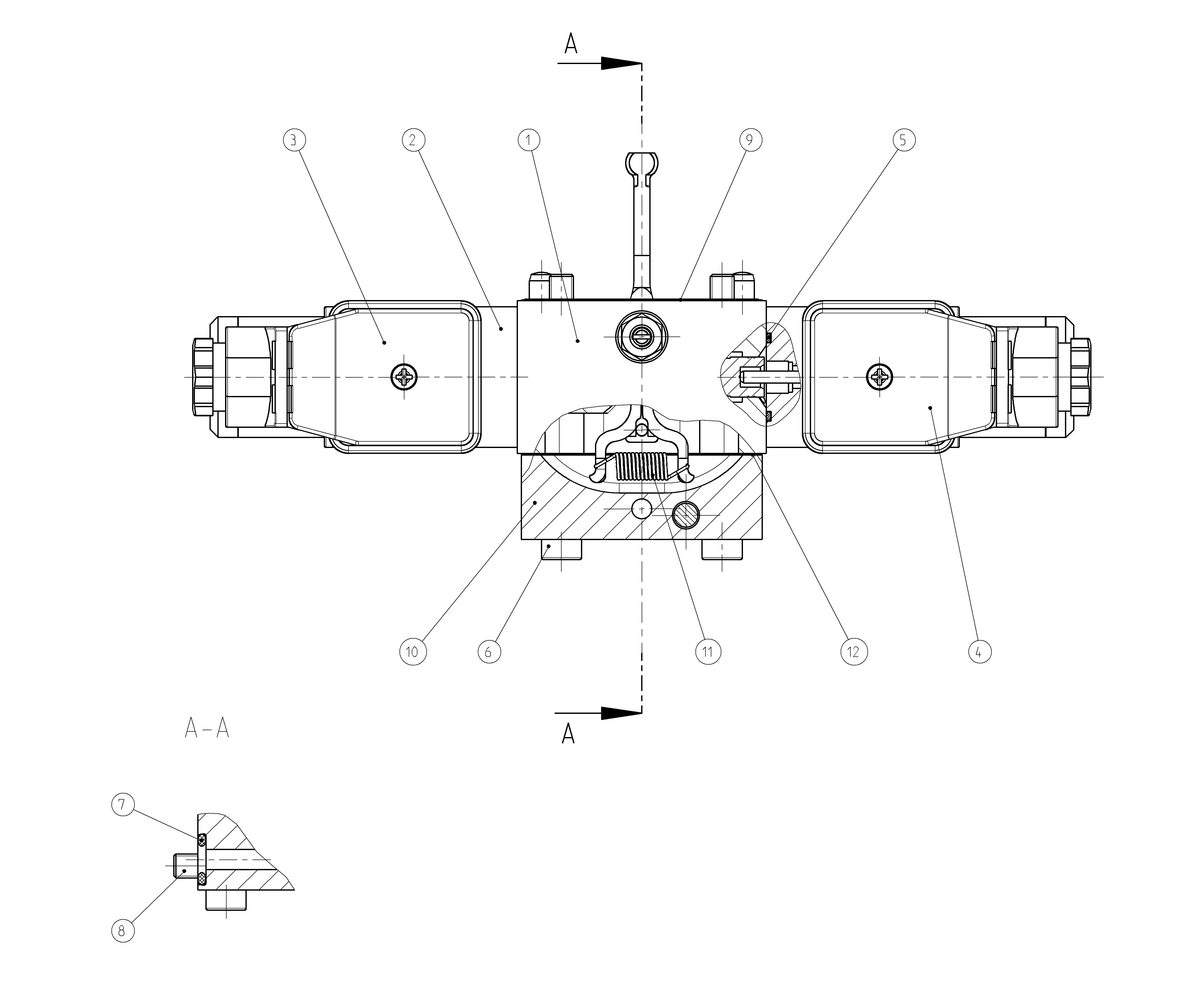

CONTROL MODULER909609560
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429166 | BASIC UNIT Assembly parts list →L | 1 | ||
| R909441696 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | ||
| R909831494 | PLUG-IN CONNECTOR | 1 | ||
| R909831493 | PLUG-IN CONNECTOR | 1 | ||
| R909083737 | O-RINGD | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600655 | O-RINGD | 1 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R902603829 | SEALD | 1 | ||
| R902046034 | CONNECTION COVER | 1 | ||
| R909435908 | EXTENSION SPRING | 1 | ||
| R902603830 | SEALD | 1 | ||
| 98 | R902002395 | SEAL KIT | 1 |
