Assembly

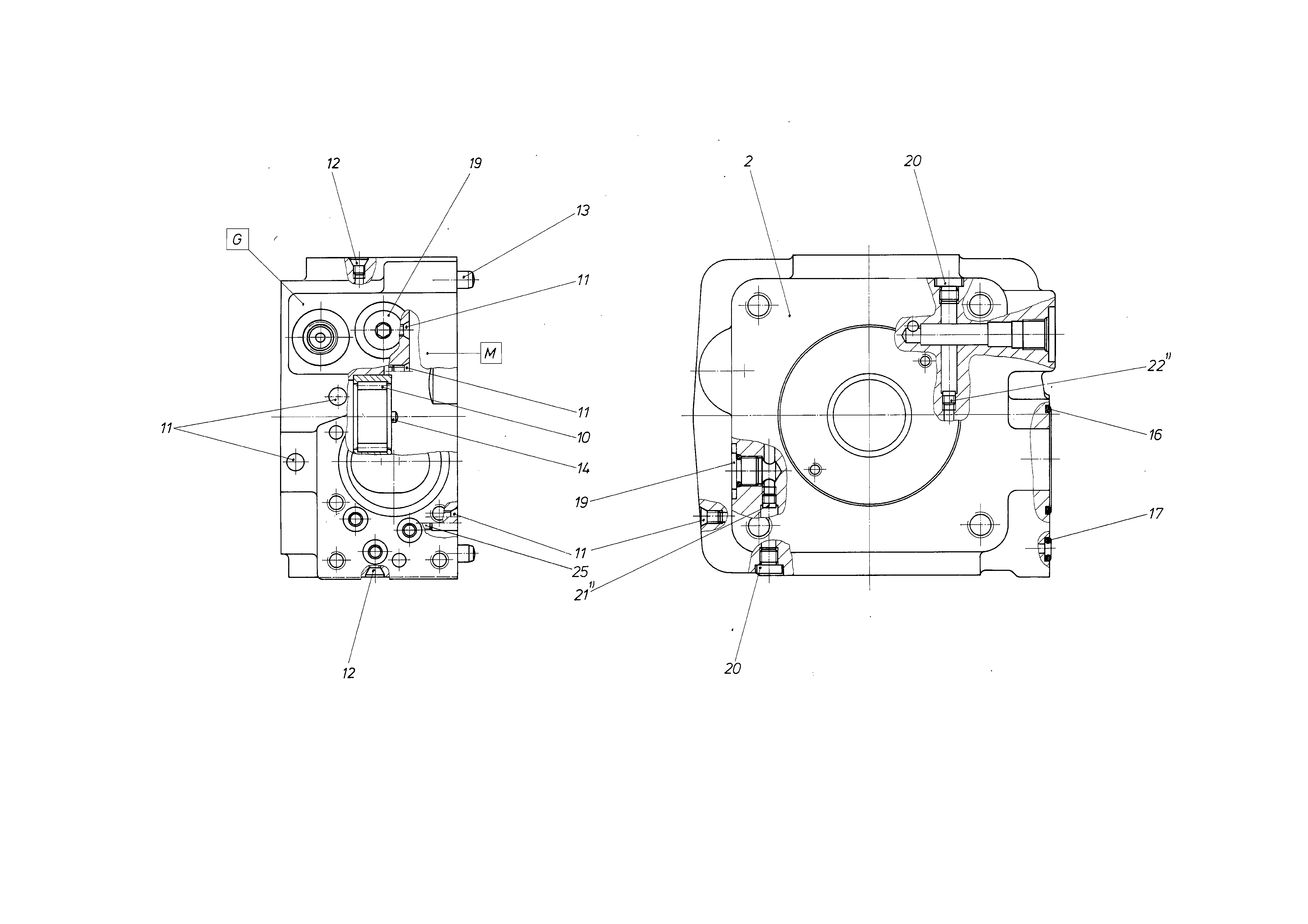

CONNECTION PLATE, RLR909613084
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R902036251 | CONNECTION PLATE, RL | 1 | |
| 10 | R909831337 | CYL. ROLLER BEARING | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909084213 | STRAIGHT PIN | 2 | ||
| R909087755 | STRAIGHT PIN | 1 | ||
| R909086336 | O-RINGD | 1 | ||
| R902602890 | R-RINGD | 3 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| 22 | R909156493 | NOZZLE | 1 | |
| 98 | R902002463 | SEAL KIT | 1 |
