Assembly

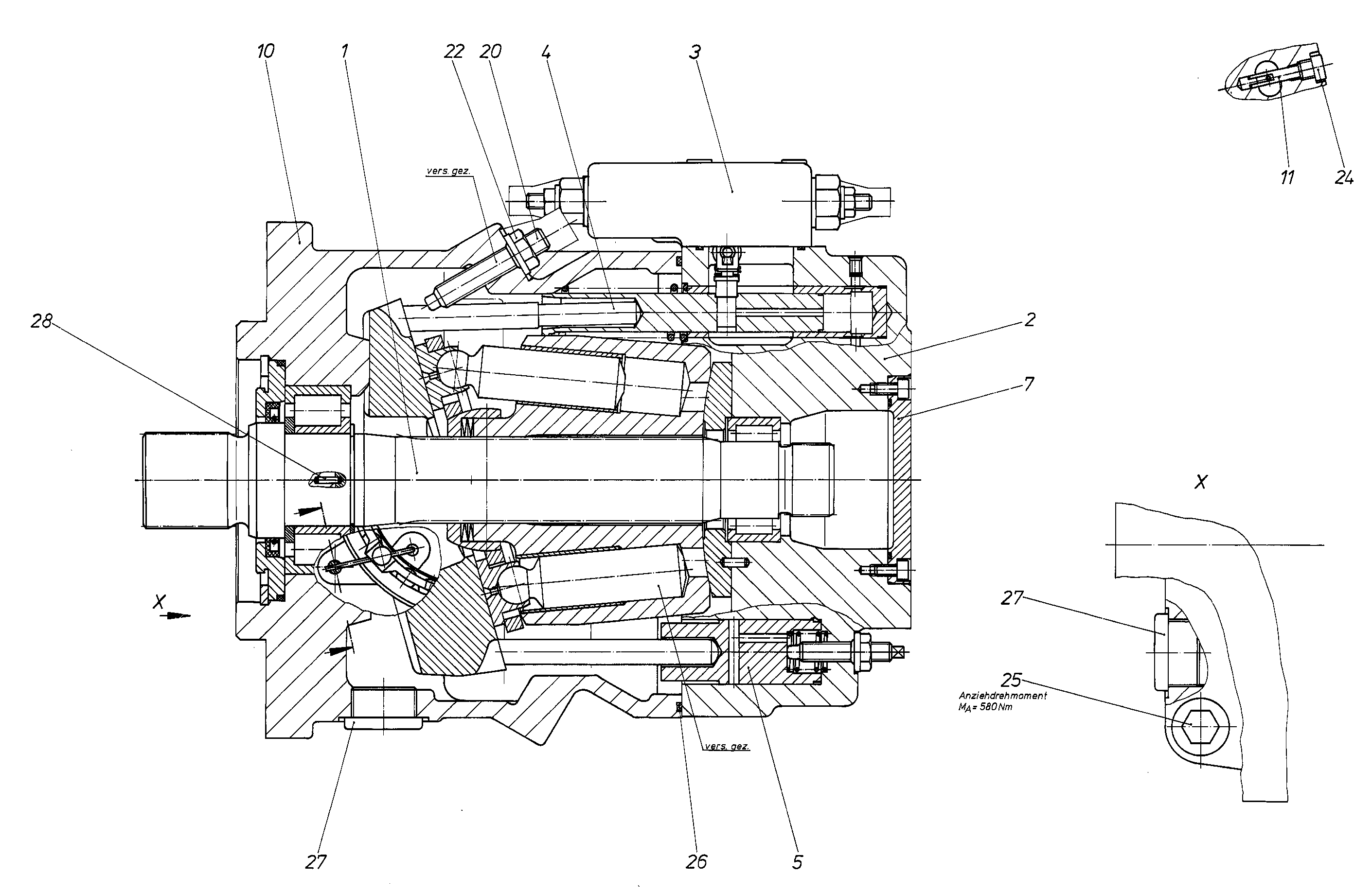

AXIAL-PISTON PUMPR909613408
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607824 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909608065 | CONNECTION PLATE, LL Assembly parts list →L | 1 | ||
| R909613340 | REGULATOR Assembly parts list →L | 1 | ||
| R909606086 | CONTROL Assembly parts list →L | 1 | ||
| R909446463 | CONTROL Assembly parts list →L | 1 | ||
| R909442074 | COVER Assembly parts list →L | 1 | ||
| R909443598 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909445855 | SETSCREW | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909830779 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085367 | O-RINGD | 1 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| 40 | R902123558 | SHUTTLE VALVE Assembly parts list →L | 1 | |
| 98 | R902095631 | SEAL KIT | 1 |
