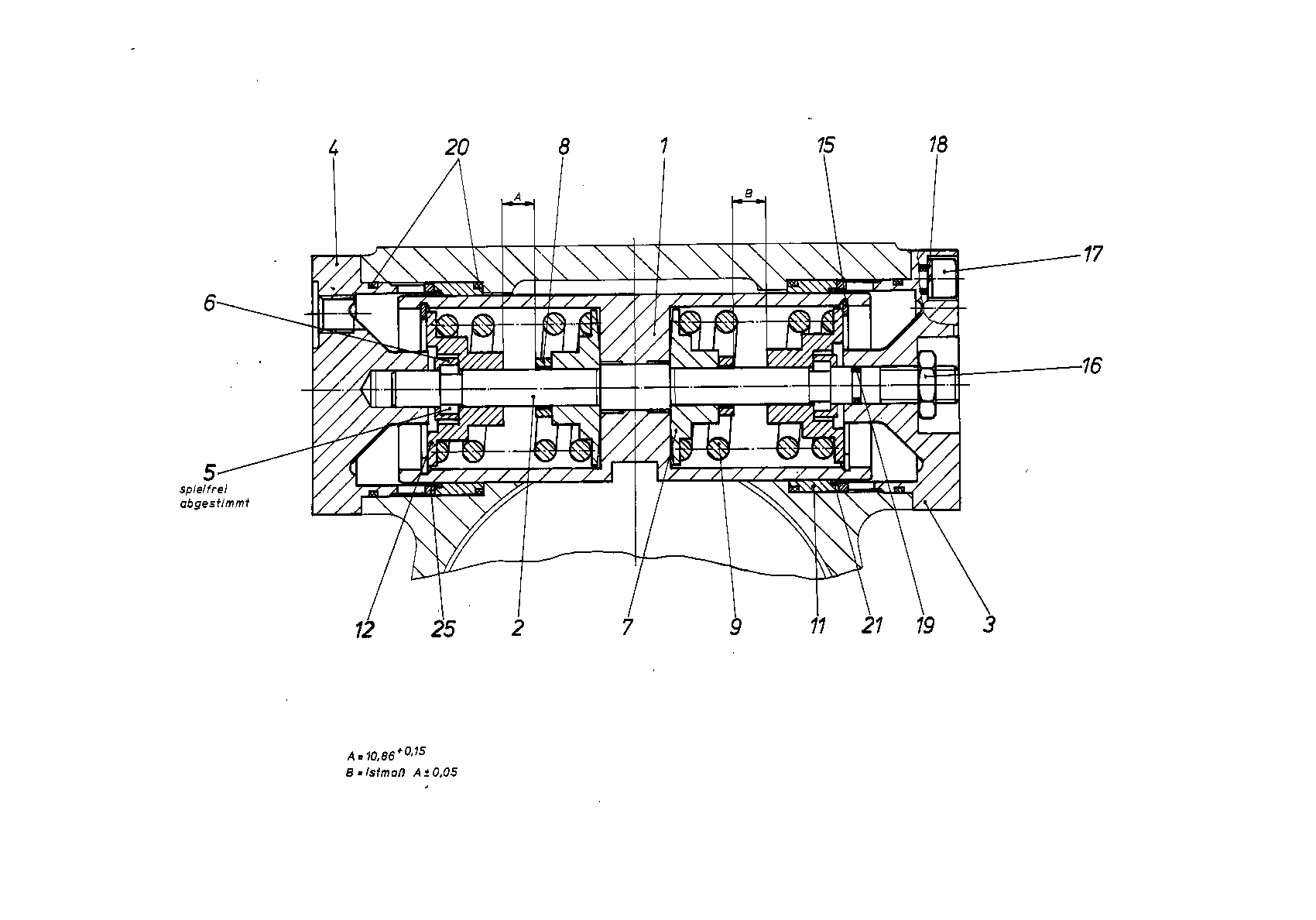

Assembly
CONTROLR909613496
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902020453 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| 3 | R909652037 | COVER | 1 | |
| 4 | R909652038 | COVER | 1 | |
| 11 | R909449800 | BUSHING | 2 | |
| R909154918 | HEXAGON NUT | 1 | ||
| 17 | R909083034 | SOCKET HEAD CAP SCREW | 8 | |
| R909083785 | O-RINGD | 4 | ||
| 21 | R909831469 | ROD SEALD | 2 | |
| 25 | R909652025 | BACKUP RING | 2 | |
| 98 | R902002371 | SEAL KIT | 1 |
